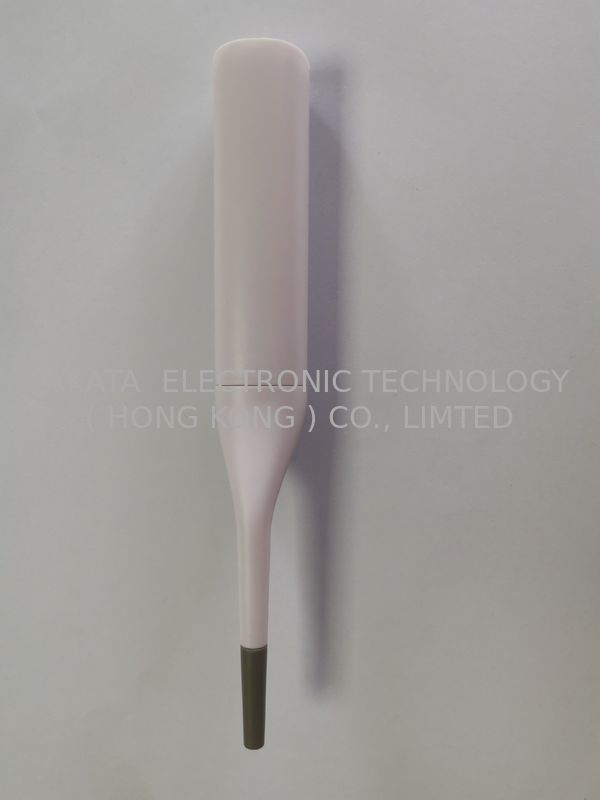

• Futaba Mould Base Endoscope Plastic Molded Parts
Futaba Mould Base Endoscope Plastic Molded Parts

Futaba Mould Base Endoscope Plastic Molded Parts

Product Details:

Place of Origin: Dongguan China
Brand Name: GT
Certification: ISO 9001 , IGS
Model Number: Plastic Injection Mold

Payment & Shipping Terms:

Minimum Order Quantity: 1 mold
Price: Negotiate
Packaging Details: Woodencase for packaging mold & Carton Box for packaging products
Delivery Time: 20 days after 2D 3D confirmed
Payment Terms: T/T, L/C, Western Union
Supply Ability: 65 molds / month
Get Best Price Contact Now

Detail Information

Mold Type: Plastic Injection Mold Mould Life: 250000-300000shots
Design Software: UG , PROE , CAD Plastic Material: PP, PC , PS , PE
Mould Material: H13 , 2738 , S136 , SKD61 Mould Base: Futaba , Lkm , Hasco , Dme
Cavity: Single Mould Tolerance: Up To 0.01mm
High Light:

Endoscope Plastic Molded Parts

,

Futaba Mould Base Plastic Molded Parts

,

Futaba Mould Base precision plastic molded parts

Product Description






Product Description
Disposable endoscopic trocar laparoscopic surgery plastic parts molding maker
Mold shaping
Plastic injection mould
Applicable to
medical equipment
Mould base
LKM,HASCO,PUNC,etc
Mould Material
M390,Viking.P20,KDAIS,2344,2083ESR,S136,etc
Gate Type
Side gate,Sub gate,Pin point gate,open gate ,value gate, etc
Mold cavity
Single or multi
Surface teatment
Polishing,Texture,mirror polish,Painting,Sand Blasting,etc
Runner
Hot runner,Cold runner
Mold life
500000-2000000 shots
Plastic Material
PEEK,PEI,ABS,PP,PA6,PA66,PPA+GF,PPSU,PC,TPU,PS,etc
Processing equipment
CNC machine,EDM machine,Wire-cutting machine,Milling/Grinding machine,Ultrasonic cleaning machine,Punch machine,etc
Detection Equipment
Coordinate Measuring machine,Projector,Calliper,Height gauge,Screw gauge,Hardness gauge,etc.
Design & program softwares
UG,AutoCAD,Moldflow,3D print,etc.





Features:



1. plastic pre-treatment for abs injection molding
ABS water absorption ratio is about 0.2% -0.8%. for the normal ABS before molding ,itsdrying time in oven is for 2-4 hours at 80-85 ℃ ,or in hopper 80 ℃ at 1-2 hours. if PC material mixed with heat-resistant grade ABS, its drying temperature should be increased to 100 ℃. The proportion of the recycled ABS materials can not exceed 30%, electroplating grade ABS can not be used again at plastic injection moulding manufacturer facilities.


2. mold and gate design
The mold for abs injection temperature can be set to 60-65 ℃. Runner diameter is 6-8mm. Gate width is 3mm, if the thickness of the article should be same as gate, the gate length is less than 1mm. Vent width 4-6mm, and its thickness 0.025-0.05mm.


3. Melt temperature
Melt temperature could be decided by Air injection . Different grades of ABS means that their melt temperatures are also different, we recommend the following settings for plastic injection moulding manufacturer:
Impact resistance grade: 220 ℃ -260 ℃, 250 ℃ better
Plating grade: 250 ℃ -275 ℃, 270 ℃ better
Heat-resistance grade: 240 ℃ -280 ℃, 265 ℃ -270 ℃ better
Flame Retardant grade: 200 ℃ -240 ℃, 220 ℃ -230 ℃ better
Transparent grade: 230 ℃ -260 ℃, 245 ℃ better
Glass fiber reinforced grade: 230 ℃ -270 ℃
High requirements for products surface is, the higher melt temperature and mold temperature should be.


4, the injection speed
Flame Retardant grade with slow speed, Heat-resistance grade with quick speed. abs injection molding products with high surface requirements should take use of high-speed and multi-stage injection rate .


5. back pressure
Back pressure should be as low as possible under normal circumstances, the normal back pressure is 5 bar.


6. residence time in barrel
At a temperature of 265 ℃, maximum of 5-6 minutes residence time in the barrel . Flame Retardant grade ABS is even shorter.For the downtime, it should set the temperature as low as 100 ℃, and then clean up barrel with the melting common grade ABS . after cleaning up,the mixture should be put into cold water to prevent further decomposition. if ABS need to replace the other material used, it firstly need clean up barrel with PS, PMMA or PE. Some ABS products is without any problems after releasing from the mold , but over a period of time, they could be discolored,for it may be overheating or melting plastic staying too long in barrel.


8.the products after-treatment
ABS injection moulding products generally do not need the further treatment, only plating grade products should be subject to heat (70-80 ℃ ,2-4 hours) to remove the surface traces.Electroplated products could not use release agents, and products should be packaged immediately after removing from the mold .


9. other issues
There are several grades of ABS (especially flame retardant grade), after the plasticizing , its adhesion force is large on the screw, after long time it will decompose. When that happens, we need to pull, wipe and clean up the screw regularly with PS and other plastic material.






Specifications:



1. Quote competitive price according customer detail requirement

2. Sign agreement.

3. Customer T/T deposit to us to design mould

4. Send mould drawing to customer for confirmation

5. Mould design confirmed and start to make mould.

6. Make mould trial during tooling time(which we get agreement with customer).

7. Seed mould trial sample to customer for inspection.Or customer come to our factory to inspect mould

personally.

8. Customer T/T balance to us after mould confirmed.

9. Deliver mould after get balance.




Were you able to find a good source for plastic injection molds?





You may find out there are very few Chinese manufacturers that could satisfy your companies' needs. We are a Chinese company with our own tooling factory in Zhejiang China. We build very precise and high quality plastic injection molds exclusively for companies from US, Canada, UK, Germany, Italy etc. China Mold Maker We have very good equipment including high speed CNC, mirror EDM, slow wire cut, CMM, etc. Our mold engineers are good at English and mold technologies, so our company is easy to communicate with. Feel free to let us know if you are finding a plastic injection mold maker in China.

We are a unique hybrid solution of dealing with American and European companies but getting better Chinese prices. We will be glad to review your specifications and share them with our plastic injection mold makers as well for their input. We work on a cost plus basis, we will give a very honest quotation to build what exactly you are expecting. We have a reputation for making only top quality molds and we stand behind our work. We think you will really like working with our company. We are also glad to give you the references of our many US customers that can tell you the kind of services we can offer.
