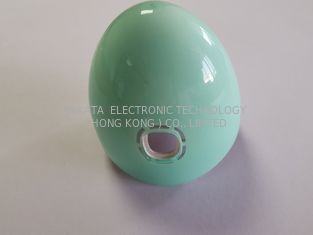

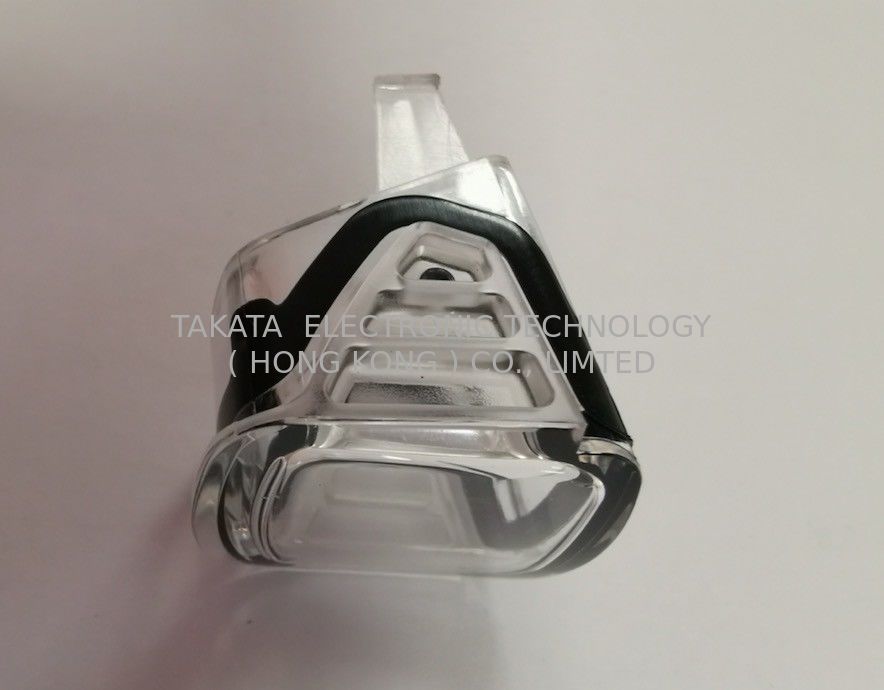

Hot Treatment H13 ±0.01mm Two Colour Injection Moulding

Hot Treatment H13 ±0.01mm Two Colour Injection Moulding

Product Details:

Place of Origin: Dongguan China
Brand Name: GT
Certification: ISO 9001 , IGS
Model Number: Double Injection Mold

Payment & Shipping Terms:

Minimum Order Quantity: 1 mold
Price: Negotiate
Packaging Details: Woodencase for packaging mold & Carton Box for packaging products
Delivery Time: 20 days after 2D 3D confirmed
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 65 molds / month
Get Best Price Contact Now

Detail Information

Mold Type: Double Injection Mold Mould Life: 300000-500000 Shots
Design Software: UG , PROE , CAD Plastic Material: PP, PC , PS , PE
Mould Material: H13 , 2738 , S136 , SKD61 Mould Base: Futaba , Lkm , Hasco , Dme
Mold Cavity: 1-32 Cavity Tolerance: Up To 0.01mm
High Light:

±0.01mm Two Colour Injection Moulding

,

H13 Two Colour Injection Moulding

,

±0.01mm injection moulding products

Product Description





Company Profile:



Dongguan Gaotian precision mold factory was established in 2005, specializing in injection mold development, design and production.

Eing the leading plastic mold maker in China, Gaotian precision mold factory has been actively and sincerely striving to improve itself. Especially in high precision plastic mould, we have been doing a good job in this respect and have much to its credit.

Assembling of manufacturing, design, engineering and marketing, our company has engaged ourselves in the field of mold making and plastic part molding and won the title of the ISO9001:2000 certificated corporation which has introduced the 5S system into the management. In order to fulfill the requirements of different clients correctly and effectively, we built up a special team called cost and technology team to do the DFM (design for manufacture) to customers for each project.

Now, our products, covering various fields of automobile, electron, computer peripheral, house application, industrial application and medical application, have been sold all over the world and win the favorable comment from the customers.





The mould is made with many complicated slides and inserts.We can customize diverse moulds for our clients based on the 3D drawing they provide, such as the electronic part mould, plastic injection mould, die-casting mould and so on.



Our full turn key solutions include: electronics design, tooling design and manufacture, material procurement and supply chain management, electronics & plastics assembly, test development, final system box build, This range of capability provides for the seamless transition of products from one service offering to another, reducing time to market and total cost.


Producing Process


Audit drawings - mold flow analysis - design validation - Custom Materials - mold processing - core processing - electrode machining - Runner system processing - parts processing and procurement - machining acceptance - cavity surface treatment process - complex mode Die - The entire mold surface coating - Mounting plate - mold sample - sample test - sending samples


Specifications:

1. Quote competitive price according customer detail requirement
2. Sign agreement.
3. Customer T/T deposit to us to design mould
4. Send mould drawing to customer for confirmation
5. Mould design confirmed and start to make mould.
6. Make mould trial during tooling time(which we get agreement with customer).
7. Seed mould trial sample to customer for inspection.Or customer come to our factory to inspect mould
personally.
8. Customer T/T balance to us after mould confirmed.
9. Deliver mould after get balance.





Trade information:


MOQ 1 set
Mold lead time T1 sample, about 3-10 weeks, according to the mold requirement
Production lead time 2-5 weeks, according to the order Qty
Mold payment term 50% T/T deposit with PO, balance 50% T/T after sample approved
Products payment term 30% T/T deposit with PO, balance 70% T/T before shipment
Port of loading Ningbo or Shanghai port, also can be Shenzhen port



Description:


Mould material 45#, 50#, P20, H13, 718, 2738, NAK80, S136, SKD61 etc.
Mould base LKM, HASCO etc.
Cavity Single/multi
Runner Hot/cold
Design software UG, PROE, CAD, CAXA etc.
Plastic material PP, PC, PS, PE, PU, PVC, ABS, PMMA etc.
Mould life 300,000-3,000,000 shots
Delivery time 15-60days
Specification Depends on customer's requirements
Mold doff way Doff plate, ejectors, air valves, hydraulic jar, etc
Mold hot treatment Including quencher, tempering, etc
Mold cooling system Water cooling or Beryllium bronze colling, etc
