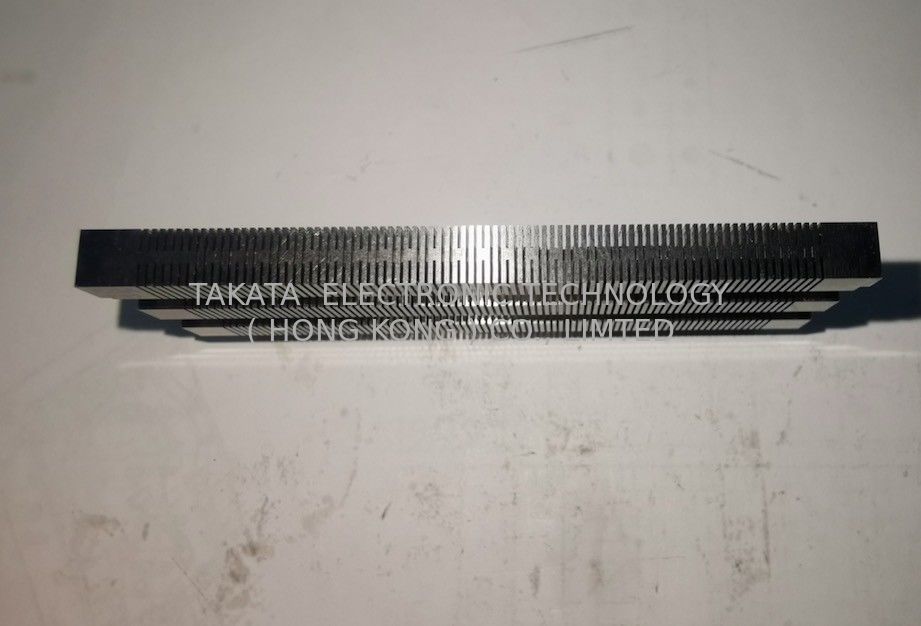

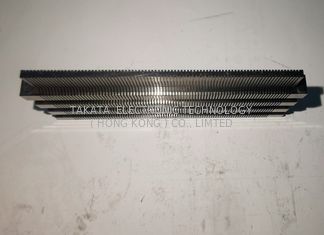

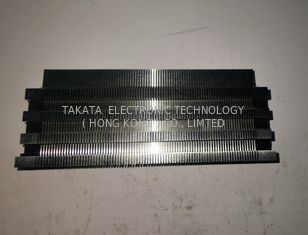

Die Casting 0.002mm LKM Base Injection Moulding Products

Die Casting 0.002mm LKM Base Injection Moulding Products

Product Details:

Place of Origin: Dongguan China
Brand Name: GT
Certification: ISO 9001 , IGS
Model Number: Injection Mold Parts

Payment & Shipping Terms:

Minimum Order Quantity: 1 mold
Price: Negotiate
Packaging Details: Woodencase for packaging mold & Carton Box for packaging products
Delivery Time: 20 days after 2D 3D confirmed
Payment Terms: T/T, L/C, Western Union
Supply Ability: 65 molds / month
Get Best Price Contact Now

Detail Information

Mold Type: Injection Mold Parts Runner: Cold / Hot
Mould Life: 50K-3000K Shots Plastic Material: PP, PC , PS , PE
Mould Material: H13, NAK80, S136, SKD61 Mould Base: Futaba , Lkm , Hasco , Dme
Cavity: Single Mould Processing Accuracy: 0.002-0.005mm
High Light:

LKM Base Injection Moulding Products

,

0.002mm Injection Moulding Products

,

0.002mm precision injection molding

Product Description




Introduction of Precision Mold Parts




1. Name: Custom Made Precision Machining Mold Parts

2. Equipment List: Horizontal injection machine, Double injection machine, Vertical injection machine, stamping machine.

3. Injection Molding Machines: We have 43 machines, buyed from Japan Fanuc, Taiwan YiZhan and China HongRui.

4. Processing methods/ technologies: For the automobile mold parts, it is processed by precision grinders and electrical discharge machines.

5. Processing equipments: Milling , Grinding, Wire cutting, EDM, etc.

6. Application: It's assembled on a car mold as a components.

7. Surface treatment: For this mold part, its surface treatment is polishing. And other surface treatments can be available in our factory, such as: PCD caoting, DLC caoting and mirror polishing, etc.

8. Design software: UG, PRO/E ,CATIA, SOLIDWORK, CAD, PDF, etc.





product Used:



Automotive Connector Mold
Precision Connector Mold
Injection Products
Precision Powder Metallurgy Mold
Powder Injection
Die-Casting Mold




Tolerance

Accuracy of grinding: 0.001 mm;
Accuracy of EDM: 0.002 mm;
Accuracy of Wire-cutting: 0.002mm;
Accuracy of CNC: 0.002mm
In short, the requirment of tolerance as customer's demand.




Item No
Precision mold parts
Company Name
Kunshan MAP
Main Product
Plastic injection molding, precision parts, CNC machining, conformal cooling manufacturing etc.
Customization
Yes
Surface treatment
Heat treatment, polishing, Ticn coating
Processing equipments
CNC//machining center/grinding machine/milling machine/drilling machin/EDM/ wire-cutting machine, etc.
Inspection instrument
projector,height gauge,three dimensional measuring instrument,microscope,height gauge,thickness meters,
International standard
Non-standard and standard(DME,HASCO,DIN,GB)
QC System
Pre-inspection, intermediate inspection, post-inspection, three procedures to ensure that each product is qualified
Precision
± 0.001mm
Standard
JIS,DIN,ASTM/AISI international industrial standard
MOQ
1
Straightness
± 0.002mm
Shipment
International express(DHL FedEx TNT UPS EMS SF Express)
Delivery time
general 7-10 days,large qty need to discuss



Milling Assembly


1. Professional tool makers for prefect assembly.
2. Milling Processing For pre-rough machining.

Stamping Insert Molding


We have 2 automatic stamping machines with 45 tons to produce terminals for insert molding parts. We can provide one-step service for our customers.
