HRC H45 Plastic Bottle Molds CMM Testing 0.01mm Tolerance

HRC H45 Plastic Bottle Molds CMM Testing 0.01mm Tolerance

Product Details:

Place of Origin: Dongguan China
Brand Name: GT
Certification: ISO 9001 , IGS
Model Number: Stirring Teeth Mold

Payment & Shipping Terms:

Minimum Order Quantity: 1 mold
Price: Negotiate
Packaging Details: Woodencase for packaging mold & Carton Box for packaging products
Delivery Time: 20 days after 2D 3D confirmed
Payment Terms: T/T, L/C, Western Union
Supply Ability: 65 molds / month
Get Best Price Contact Now

Detail Information

Testing Report: 100% CMM Testing Runner: Cold / Hot
Design Software: UG , PROE , CAD Plastic Material: PP, PC , PS , PE
Mould Material: H13, NAK80, S136, SKD61 Mould Base: Futaba , Lkm , Hasco , Dme
Cavity: Single Mould Tolerance: Up To 0.01mm
Mould Life: 250000-300000shots Application: Home Appliance,Industrial,Automotive,various Range,Machine
High Light:

H45 Cavity Plastic Mold

,

CMM Testing Plastic Bottle Molds

,

0.01mm Tolerance Plastic Injection Mold

Product Description

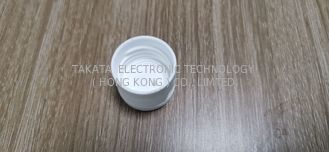

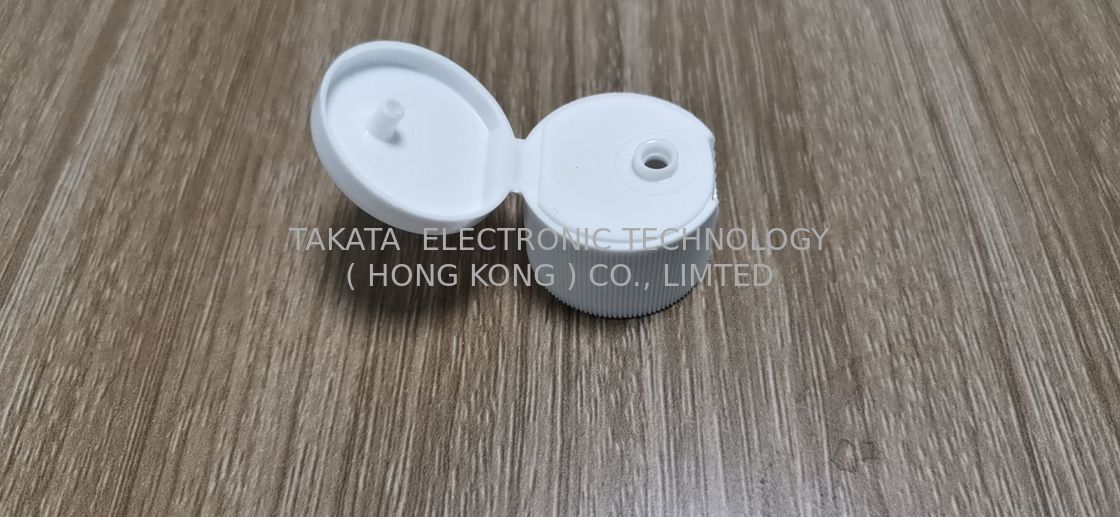

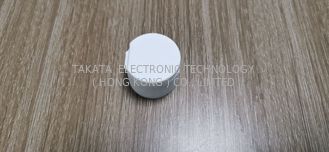

Custom Precision Plastic Bottle Cap Agitator Molds And Finished Products​



bottle cap mold Information:



Mold information content
Product Material ABS,PP,PC,PA,PMMA,PS,POM and etc.
Moldbase FUTABA,LKM,HASCO,DME you can choose
Cavity material 45#,50#,P20,H13, 718 2738, NAK80, S136, SKD61 etc
Runner Cold/Hot runner
Cavity Multi or single cavity

Gate type Side gate,Sub gate,Pin point gate,Edge gate etc
Treatment Heat treatment and Nitriding,polish ect.
HRC H45~52
Product weight 50~5000 K
Machine type 130ton-550ton
The standard of appearance of the products for stripe MT(Mold Tech),YS,HN series
The way of Color contrast RAL K7,PANTONE





Detail information of bottle cap mold mould steel



Mould material mould hardness mould life
P20 HRC 29-33 300000 shot
H13 HRC >43 1000000 shot
718 HRC 30-36 500000 shot
S136 HRC 48-52 50000 shot
2344 HRC >48 800000 shot





Advantage

1. Near-net shape products can be manufactured through molds.
2. Suitable for materials that are difficult to process.
3. Quick installation system can not only reduce the time to install the mold, but also reduce the damage rate of the mold
4. Usually, multiple air holes are embedded in the product, and the visible density is lower than the true density, which reduces the weight of the product.
5. Use lubricating oil by using air holes. No oil supply is required.



Focus on quality

Every part is carefully processed (by grinding, machining, milling, wire-cutting, EDM etc) to the exact tolerances shown on the drawing and carefully checked both in production line and QC room (QC check every dimension of every part before packing and shipping). In this way, we assured the high precision and thus the interchangeability in the tool room of the customers’ factory.




Product Description


Mould Shaping injection mold
De-mould Type Automatic Eject (Ejector pin, Air gate, Ejector plate, Hydro-cylinder, etc)
Mould material NAK80, S136, 2316, 2738, H13, 5CrNiMo, 718H, P20, 40Cr, 60#, 45# etc
Mould base 45#,S50C,LKM,etc.
Mould Cavity Single or multi
Sprue Gate Hot runner, Cold runner, Pin-point gate, Submarine gate, etc
Design software UG, PROE, CAD, CAXA, ect.
Plastic material PP, PC, PS, PE, PU, PVC, ABS, PMMA, ect.
Mould life 300,000-3,000,000 shots
Delivery time 45-75 days
Payment Terms T/T or L/C
Packaging Wooden Cases
Transportation By Sea or by air
Export Country worldwide
Specification Depends on customer's requirements.
OEM order welcome
