Futaba Base SKD61 Plastic Injection Molding 0.01mm Tolerance
Product Details:
Place of Origin: | Dongguan China |
Brand Name: | GT |
Certification: | ISO 9001 , IGS |
Model Number: | Plastic Injection Mold |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 mold |
---|---|
Price: | Negotiate |
Packaging Details: | Woodencase for packaging mold & Carton Box for packaging products |
Delivery Time: | 20 days after 2D 3D confirmed |
Payment Terms: | T/T, L/C, Western Union |
Supply Ability: | 65 molds / month |
Detail Information |
|||
Key Words: | Plastic Injection Mold | Mould Life: | 250000-300000shots |
---|---|---|---|
Design Software: | UG , PROE , CAD | Plastic Material: | PP, PC , PS , PE |
Mould Material: | H13 , 2738 , S136 , SKD61 | Mould Base: | Futaba , Lkm , Hasco , Dme |
OEM / ODM: | Acceptable | Tolerance: | Up To 0.01mm |
High Light: | Futaba base Plastic Injection Molding,0.01mm Tolerance Plastic Injection Molding,SKD61 Plastic Injection Molding |
Product Description

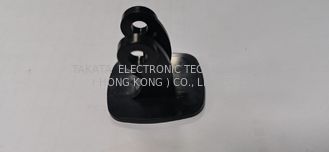

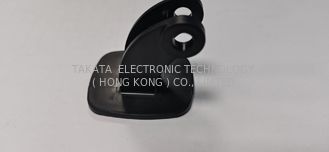

OEM / ODM Automotive Lamp Bracket Injection Molding Tolerance Up To 0.01mm
The main manufacturing fields of the company are divided into two parts: the first part is plastic products, such as sweeper, electronic cigarette case, mobile phone lens, washing machine panel, auto parts, aircraft accessories, mobile phone cover, dining plate, contact lens box, VR glasses, rice cooker control panel, etc. The second part is injection mold and precision mold parts processing. We have advanced processing equipment,perfect quality control and assurance system.
Name | injection mould making |
mould material | 45#,P20,H13,718,2738,NAK80,S136,etc. |
mould base | LKM,HASCO,etc. |
Cavity | 1 or more |
Runner | cold or hot runner |
Mould life | 45# :300,000-500,000shots |
P20: 500,000shots | |
718: 700,000shots | |
Design software | UG,PROE,CADetc. |
Plastic material | PP,PC,PE,ABS,PS,PVC,PET,PA6/66,etc. |
Delivery time | 30-40days |
Specification | with good quality lower price |
Plastic molding Specification
1. Professional manufacturer,design,production injection mould and stamping mould quality control
2. rich export experience plastic injection mould and stamping mould
3. Reasonable price of design mould
4. Cavities: single or as per your requirements cavity
5. Treatment: S45C Pretreat>25Hrc,And Nitriding
6. Mould Steel: Cavity ,Core and slide: P20 ,2738,2136 available Moldbase :LKM available
7. Standard:DEM ,HUSKY,available
8. Hot runner: according to your demand
Plastic Injection Mold making
1. Samples/Drawing &Requirement from you
2. Mould design:we will Communicate and Exchange the opinion with you after you place order.
3. Material Purchase:Steel cutting and Mould base tooling.
4. Assembling.
5. Inspection of mould : following and controlling the tooling processing.
6. Mould testing:We will inform you the date.Than will send the sample's inspection report&injection parameters with the sample to you!
7. Your instruction &confirmation for shipment.
PLASTIC INJECTION PART BASIC INFORMATION
|
PLASTIC INJECTION MOULD BASIC DESCRIPTION
|
||
Plastic Part Name
|
Automotive plastic product
|
Injection System
|
Hot runner /Cold Runner
|
Surface Requirement
|
Texture EDM SPI Chrome Coating
|
Cavitation
|
Single /Mutil Cavites
|
Plastic Part Resin
|
thermoplastic/Thermosetting
|
Ejector System
|
Pin/air Valve/Stripper plate
|
Tolerance Request
|
UP to (±0.005mm)
|
Steel Standard
|
ASSAB/FINKL/BOHLER/ Groditz/Buderus
|
Production Quantity
|
Up to 1 miliion
|
Cooling
|
Baffles/Sprin Piple/3D printing water line
|
Part Size Range
|
Up to 1500mm
|
Standard Delivery
|
40 days or 5 weeks
|
Multi Injection
|
Single/Double/multi color
|
Standard Parts/Cylinders
|
DME/HASCO/PROGRESSIVE/
MISUMI/Parker/HP/Merkle
|
Design Software
|
Data exchange: UG, PRO/E, SOLIDWORKS, CAITA, CAD, STP, X_T, IGS, PRT, DWG, DXF
|
Design Capability
|
DFM,Mould flow analysis,Product optimization,
Full 2D & 3D mould design,Reverse engineering,Collaborative design with customer's
idea |
Quality Assurance
|
Design Control, Steel Hardness Inspection Report, Steel Dimension Control Report, Mold Core and Cavity Dimension Inspection Report
|
Documents / Reports Provided
|
Fully drawing,Weekly Processing Report,
Steel Dimension report, Processing Report,Sample Dimension Report.
|
Common packing:
a.Production + Blank poly bag + Neutral Label + Export carton
b.Production + Blank poly bag + Neutral Label + gunny bag
(B) Special packing:
a. OEM printing poly bag + Export Carton
b. OEM inner box + Export carton
c. OEM Label, Inner box, carton etc.
To meet various customer requirements
