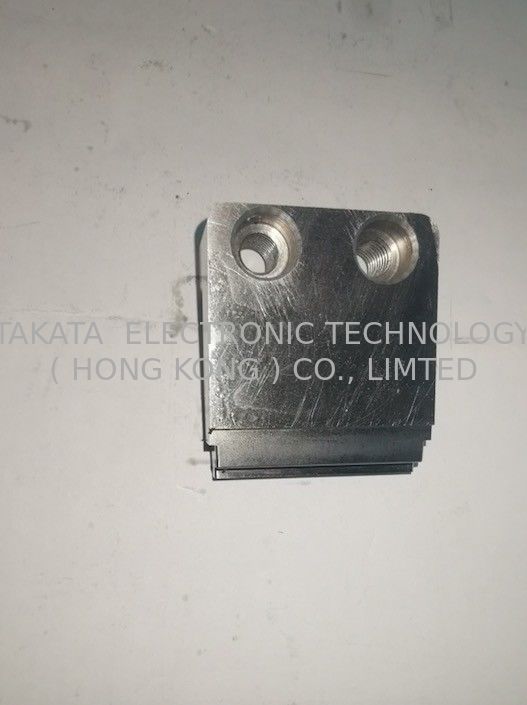

Metal Lock Block IGS PBT Molded Precision Components

Metal Lock Block IGS PBT Molded Precision Components

Product Details:

Place of Origin: Dongguan China
Brand Name: GT
Certification: ISO 9001 , IGS
Model Number: Injection Mold Parts

Payment & Shipping Terms:

Minimum Order Quantity: 1 mold
Price: Negotiate
Packaging Details: Woodencase for packaging mold & Carton Box for packaging products
Delivery Time: 20 days after 2D 3D confirmed
Payment Terms: T/T, L/C, Western Union
Supply Ability: 65 molds / month
Get Best Price Contact Now

Detail Information

Mold Type: Injection Mold Parts Runner: Cold / Hot
Mould Life: 50K-3000K Shots Plastic Material: PP, PC , PS , PE
Mould Material: H13, NAK80, S136, SKD61 Mould Base: Futaba , Lkm , Hasco , Dme
Cavity: Single Mould Processing Accuracy: 0.002-0.005mm
High Light:

PBT Molded Precision Components


IGS Molded Precision Components


IGS plastic mold parts

Product Description


We have 43 injection molding machines from 50-300 ton . Japan Fanuc, Taiwan YiZhan and China HongRui. We are professional manufacturer for special engineering resin such as PEEK,PAEK, , PPSU , PEI , LCP , PPS , PFA , PUDF , PCTG , PET , PA66 , PCS etc. Material temperature max 430C and mold temperature max 180C.




Feature: Heating without harmful substances And heating without deflection.

Application: E-cigarette heating part And Carrier of gene detection instrument.

2. PPE

Feature: Specific permittivity and good weather resistance.

Application: 4G base station.

3. PEI

Feature: High precision, quick response.

Application: IC burn-in socket


Feature: 3D Directions screw structure And good appearance.

Application: Medical operation and Forceps handle.


Feature: Structural strength and Transparency requirements.

Application: Medical chamber.

6. PBT

Feature: Press-fit terminals

insert molding

Application: Automotive sensor


Mould position


Generally refers to the positioning mechanism of the mold, that is, any mechanism that can obtain lateral core pulling or lateral parting and reset action to pull out the product's undercut, depression and other positions.


Positioning action principle and design essentialsedit


It uses the mold opening action of the molding to make the diagonal brace tip and the slider move relative to each other, so that the slider moves along the mold opening direction and the horizontal direction to make it free from the undercut. as the picture shows:
In the picture:
β = α +2 °~3 ° (to prevent interference when clamping the mold and reduce friction when opening the mold)
α ≦ 25 ° (α is the inclination angle of the diagonal brace pin)
L=1.5D (L is the mating length)
S=T+2 ~ 3mm (S is the horizontal movement distance of the slider; T is the finished product undercut)
S=(L1xsina- δ )/cos α (δ is the gap between the brace tip and the sliding block, generally 0.5MM;
L1 is the vertical distance of the brace tip in the slider)



Accuracy of grinding: 0.001 mm;
Accuracy of EDM: 0.002 mm;
Accuracy of Wire-cutting: 0.002mm;
Accuracy of CNC: 0.002mm
In short, the requirment of tolerance as customer's demand.

Accuracy Of Wire-Cutting: 0.002mm Precision Mold Inserts For Powder Metallurgy Mold
Plastic-ABS, PC, PMMA, POM, PA (NYLON), PP, PBT, etc.
Metal-Aluminum, Copper, Rubber, Stainless Steel, Sheet Metal, Alloy
Available Service
1. Industrial Design
2. CNC Rapid Prototyping
3. SLS/SLA/3D Printing Prototype Service
4. High Precision CNC Machining
5. Silicone Mold (Vacuum Casting) & Rapid Tooling
Surface Treatment
Painting, Polish, Silk-sreen Printing, Anodized, Electronic Plated, Sandblasted, Translucent Surface, Brush, Bending, etc
Available Drawing Format
2D Format-- .dwg/.cdr/.pdf/.ai
3D Format-- .igs/.stp/.step/.sld/.prt/X_T
The fields we serve
1. Electronic Digital
2. Medical Devices
3. Telecommunications
4. Auto Parts
5. Household Appliance
6. Kitchenwares
Our Advantage
1. Good quality and reasonable price.
2. Shot lead time.
3. Advanced technology and equipment.
4. Responsible for any quality problems from us.
