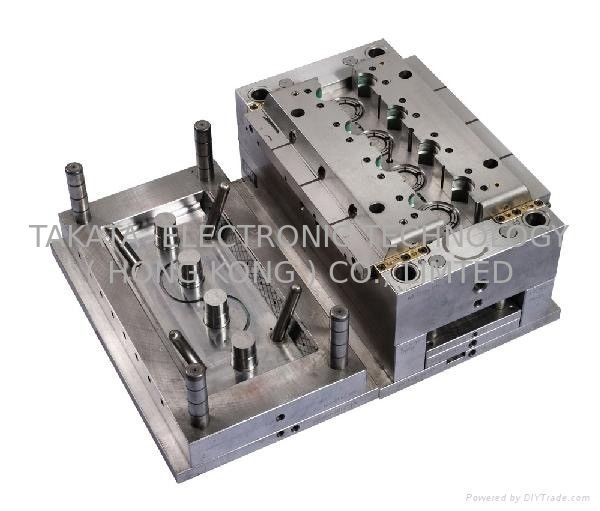

Hot Runner NAK80 +/-0.003mm Injection Molding Mold
Product Details:
| Place of Origin: | Dongguan China |
| Brand Name: | GT |
| Certification: | ISO 9001 , IGS |
| Model Number: | Plastic Injection Mold |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 mold |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Woodencase for packaging mold & Carton Box for packaging products |
| Delivery Time: | 20 days after 2D 3D confirmed |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 65 molds / month |
|
Detail Information |
|||
| Key Words: | Plastic Injection Mold | Mould Life: | 250000-300000shots |
|---|---|---|---|
| Design Software: | UG , PROE , CAD | Plastic Material: | PP, PC , PS , PE |
| Mould Material: | H13 , 2738 , S136 , SKD61 | Mould Base: | Futaba , Lkm , Hasco , Dme |
| Mold Cavities: | 2/4/8/16 | Tolerance: | Up To 0.01mm |
| Highlight: | +/-0.003mm Injection Molding Mold,NAK80 Injection Molding Mold,NAK80 custom plastic molding |
||
Product Description
Process
| 1.Quotation | To meet your needs |
| ↓ | |
| 2.Discussion | Mold material, cavity number, price, runner, payment, etc. |
| ↓ | |
| 3.S/C Signature | As your requirement |
| ↓ | |
| 4. Payment | Pay 50% by T/T advanced |
| ↓ | |
| 5.Product Design Checking | We check the product design. |
| ↓ | |
| 5.Mould Design | We make mould design on the basis of confirmed product design, and send to customer for confirmation. |
| ↓ | |
| 6.Mold Tooling | We start to make mold after mold design confirmed |
| ↓ | |
| 7.Mold Processing | Send report to customer when the customer want it |
| ↓ | |
| 8.Mold Testing | Send trial samples and try-out report to customer for confirmation |
| ↓ | |
| 9. Mold Modification | According to customer’s feedback |
| ↓ | |
| 10.Balance settlement | 50% by T/T after the customer approved the trial sample and mould quality. |
| ↓ | |
| 11.Delivery | UPS/DHL/EMS etc. |
We estimate the total fee for you pay the mold fee,considering the budget stress of customer,we support our customers to pay only 50% in advance,then we offer you a free 3D sample within 7 days and revise the sample details until you are satisfied.
When sample suits your requirement,we build a new mold for you and send you an enclosure sample to you for confirming again.we promise your 100% satisfaction.
The next step is injection and then manufacture enclosure for your project,we have produced over 1000 molds for customers and have 3 factories which can surely keep continuous and stable supply for you.
Precision
1. We utilize ISO9001:2008 & TS16949 standards in our operation
2. CNC tolerance: +/-0.005mm
3. WC tolerance:+/-0.003mm
4. EDM Mirror tolerance:+/-0.003mm
5. Precise Grinding Machine:+/-0.001mm
| Mould Shaping | injection mold |
| De-mould Type | Automatic Eject (Ejector pin, Air gate, Ejector plate, Hydro-cylinder, etc) |
| Mould material | NAK80, S136, 2316, 2738, H13, 5CrNiMo, 718H, P20, 40Cr, 60#, 45# etc |
| Mould base | 45#,S50C,LKM,etc. |
| Mould Cavity | Single or multi |
| Sprue Gate | Hot runner, Cold runner, Pin-point gate, Submarine gate, etc |
| Design software | UG, PROE, CAD, CAXA, ect. |
| Plastic material | PP, PC, PS, PE, PU, PVC, ABS, PMMA, ect. |
| Mould life | 300,000-3,000,000 shots |
| Delivery time | 45-75 days |
| Payment Terms | T/T or L/C |
| Packaging Wooden | Cases |
| Transportation | By Sea or by air |
| Export Country | worldwide |
| Specification | Depends on customer's requirements. |
| OEM order | welcome |
