    S136 Precision Moulded Components

    Product Details:

    Place of Origin: Dongguan China
    Brand Name: GT
    Certification: ISO 9001 , IGS
    Model Number: Injection Mold Parts

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 mold
    Price: Negotiate
    Packaging Details: Woodencase for packaging mold & Carton Box for packaging products
    Delivery Time: 20 days after 2D 3D confirmed
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 65 molds / month
    Get Best Price Contact Now

    Detail Information

    Mold Type: Injection Mold Parts Runner: Cold / Hot
    Design Software: UG , PROE , CAD Plastic Material: PP, PC , PS , PE
    Mould Material: H13, NAK80, S136, SKD61 Mould Base: Futaba , Lkm , Hasco , Dme
    Cavity: Single Mould Tolerance: Up To 0.01mm
    High Light:

    IGS Precision Moulded Components

    ,

    S136 Precision Moulded Components

    ,

    S136 custom injection molding

    Product Description

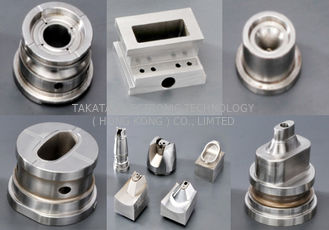

    S136 Precision Moulded Components






    Introduction of Precision Mold Parts



    1. Name: Custom Made Precision Machining Mold Parts

    2. Equipment List: Horizontal injection machine, Double injection machine, Vertical injection machine, stamping machine.

    3. Injection Molding Machines: We have 43 machines, buyed from Japan Fanuc, Taiwan YiZhan and China HongRui.

    4. Processing methods/ technologies: For the automobile mold parts, it is processed by precision grinders and electrical discharge machines.

    5. Processing equipments: Milling , Grinding, Wire cutting, EDM, etc.

    6. Application: It's assembled on a car mold as a components.

    7. Surface treatment: For this mold part, its surface treatment is polishing. And other surface treatments can be available in our factory, such as: PCD caoting, DLC caoting and mirror polishing, etc.

    8. Design software: UG, PRO/E ,CATIA, SOLIDWORK, CAD, PDF, etc.



    Business Service OEM accepted
    Processing Equipment CNC milling machines, wire cutting machines,
    surface grinding machines, EDM machines, and more.
    Application Auto mold
    Measuring& testing Height Gauge, Hardness tester, dimensional detector, projector,
    micrometer and so on.
    Machining Basis Primary cusromer's drawings, 2D or 3D is ok
    Surface Treatment according to our customers’ requirements
    Tolerance Accuracy of grinding: 0.001 mm;
    Accuracy of EDM: 0.002 mm;
    Accuracy of Wire-cutting: 0.002mm;
    Accuracy of CNC: 0.002mm
    In short, the requirment of tolerance as customer's demand.
    OEM ODM Service Yes
    Quality Assurance 1. Incoming material control to make sure all the raw materials are qualified.
    2. Operators follow the daily check list to check the machines to make sure they are in good conditions, and follow the spec to make products.
    3. Use qualified operators and correct parameters to make sure good quality.
    4. According to the quality assurance procedure to check the quality.
    5. Full quality check after product before shipping.




    Quality Inspection


    X-Ray detector

    Hexagon three coordinate measuring instrument

    Projectors

    Spectrum analyzer

    Metallographic tester

    Tensile tester

    Hardness tester

    Salt spray tester



    Specifications:



    1. Quote competitive price according customer detail requirement

    2. Sign agreement.

    3. Customer T/T deposit to us to design mould

    4. Send mould drawing to customer for confirmation

    5. Mould design confirmed and start to make mould.

    6. Make mould trial during tooling time(which we get agreement with customer).

    7. Seed mould trial sample to customer for inspection.Or customer come to our factory to inspect mould

    personally.

    8. Customer T/T balance to us after mould confirmed.

    9. Deliver mould after get balance.





    Competitive Advantage:



    1. We keep long term cooperation with some world Top Brand on electronic product area, such Epson,

    Canon and Sony.

    2. We have successfully gained the quality certificate of ISO 9001 and IGS.

    3. We can design and manufacture the mould in different specification and standard, such as DME,HASCO

    and DAIDO.

    4. The factory is well equiped with the most advanced testing instrument, it is effective to ensure the precision

    of the mould.

    5. Strict quality control;

    6. Good After-sale service;

    7. On time delivery
