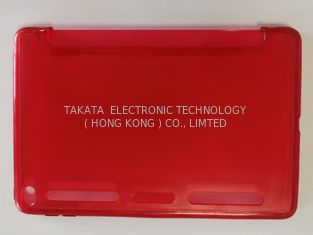

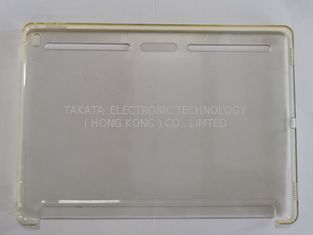

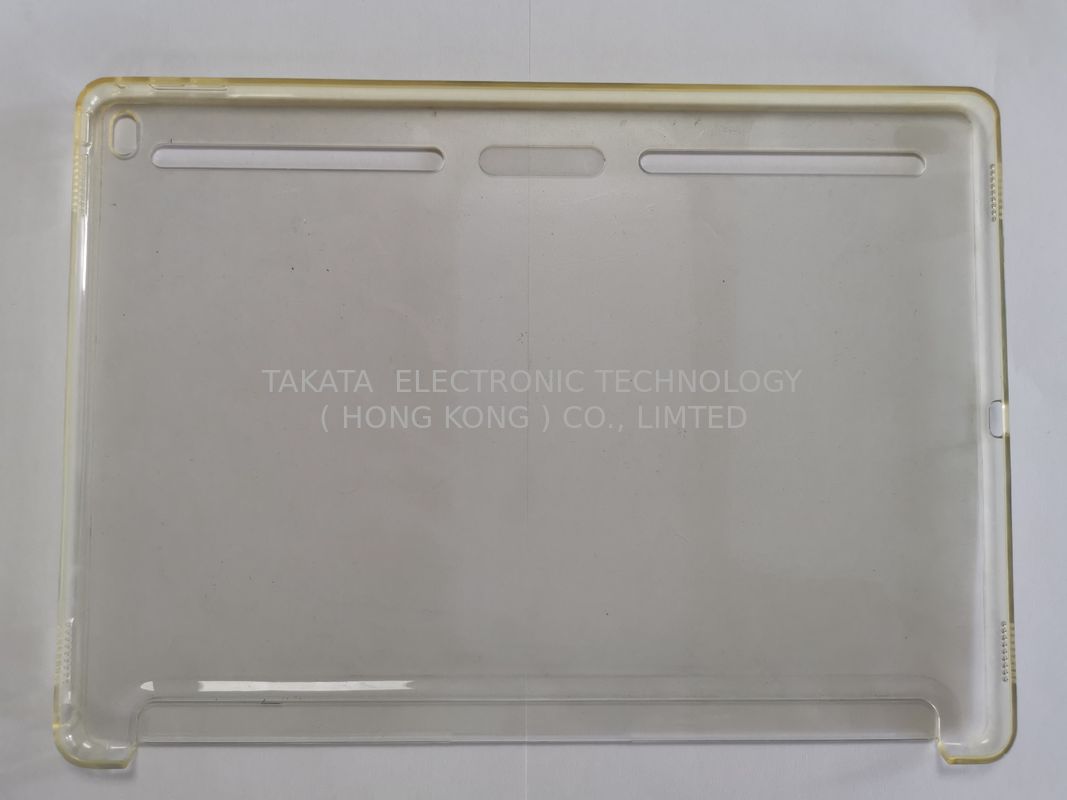

Wear Resistant ISO9001 SKD61 Double Injection Mold
Product Details:
| Place of Origin: | Dongguan China |
| Brand Name: | GT |
| Certification: | ISO 9001 , IGS |
| Model Number: | Double Injection Mold |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 mold |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Woodencase for packaging mold & Carton Box for packaging products |
| Delivery Time: | 20 days after 2D 3D confirmed |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 65 molds / month |
|
Detail Information |
|||
| Mold Type: | Double Injection Mold | Mould Life: | 300000-500000 Shots |
|---|---|---|---|
| Design Software: | UG , PROE , CAD | Plastic Material: | PP, PC , PS , PE |
| Mould Material: | H13 , 2738 , S136 , SKD61 | Mould Base: | Futaba , Lkm , Hasco , Dme |
| Standard: | LKM , DME , HASCO | Tolerance: | Up To 0.01mm |
| High Light: | SKD61 double injection mold,ISO9001 double injection mold,ISO9001 two color injection molding |
||
Product Description
Producing Process
Audit drawings - mold flow analysis - design validation - Custom Materials - mold processing - core processing - electrode machining - Runner system processing - parts processing and procurement - machining acceptance - cavity surface treatment process - complex mode Die - The entire mold surface coating - Mounting plate - mold sample - sample test - sending samples
| Finish Result | |
| As Machined | Sharp edge and burrs will be removed |
| Bead Blast | The part surface is left with a smooth, matte appearance |
| Anodized | black, red, and gold are most common—and is usually associated with aluminum. |
| seen with Type II. | |
| Powder Coat | This is a process where powdered paint is sprayed onto a part which is then baked in an oven.
This creates a strong, wear- and corrosion-resistant layer that is more durable than standard painting methods. A wide variety of colors are available to create the desired aesthetic. |
| Customized | Cotact us via email,skype,whatsapp. We will look into a finishing process for you. |
| Others | |
| Tolerance | +/-0.005mm |
| Lead Time | 1-2 weeks for samples,3-4 weeks for mass production |
| Drawing Accepted | Solid Works,Pro/Engineer, AutoCAD(DXF,DWG), PDF |
| Payment Terms | Trade Assurance, TT/Paypal/WestUnion |
| Item | Description |
| Core & Cavity Material | H13, 1.2344, 1.2738, 1.2083, 1.2311, NAK80, or others by request |
| Mould Base | ASSAB, LKM, DAIDO, FUTABA |
| Mould hardness | HRC38-52,HB,H |
| Mould Standard | MISUMI, DME,CUMSA,HASCO |
| Mould structure | 2 plates or 3 plates |
| Mould life | 300,000 - 1,000,000 |
| Part material | all thermoplastics such as ABS, PC, PP, PE, PA, TPE, POM, PPS, PBT and other high engineering plastic, such as PEEK, PPS, PPO, PEI, PES etc |
| Available format | .stp/.pdf/.x-t/.step./.dwg/.dxf/.igs/.prt/.stl/.sldprt |
We can tailor various kinds of Plastic mould for each customer as per their requirements. The quotation can
be made based on drawings or samples provided by the customers. Our products are both excellent in quality and reasonable in price. Your satisfaction is guaranteed.
