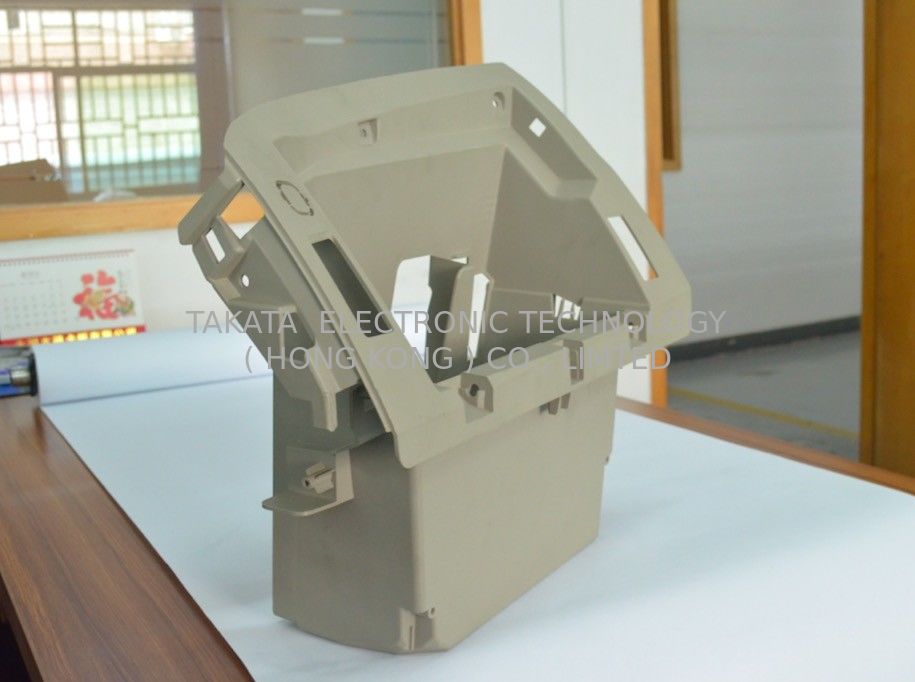

    3D Drawing 0.01mm PMMA Auto Parts Mould

    Product Details:

    Place of Origin: Dongguan China
    Brand Name: GT
    Certification: ISO 9001 , IGS
    Model Number: Auto Parts Mould

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 mold
    Price: Negotiate
    Packaging Details: Woodencase for packaging mold & Carton Box for packaging products
    Delivery Time: 20 days after 2D 3D confirmed
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 65 molds / month
    Get Best Price Contact Now

    Detail Information

    Mold Type: Auto Parts Mould Runner: Cold / Hot
    Design Software: UG , PROE , CAD Plastic Material: PP, PC , PS , PE
    Mould Material: H13, NAK80, S136, SKD61 Mould Base: Futaba , Lkm , Hasco , Dme
    Cavity: Single Mould Tolerance: Up To 0.01mm
    High Light:

    PMMA Auto Parts Mould


    0.01mm Auto Parts Mould


    0.01mm custom plastic parts

    Product Description

    3D Drawing 0.01mm PMMA Auto Parts Mould



    Plastic Mold (Mould) production process:

    1. 3d Design/Samples for quotation: According to 3D drawing or samples for quotation.
    2. Negotiations: Including the price of moulds, moulds sizes, material for cores & cavities, weight of product, product color, payment, moulds lifetime, delivery, etc.
    3. Purchasing Order : After the customer confirming the mould design and quotation.
    4. Making mold(moulds): Confirm drawing, start to do DFM, mold flows and mold detail agreed with the customer, start producion.
    5. Production schedule: Every week we will feedback to the customer about the mold progress(picture).
    6. Sample shoot: We provide the moulds test samples for confirmation(about 10-15 piece), we will start mass production when get your signature samples.


    Mould Information:


    Mold information content
    Product Material ABS,PP,PC,PA,PMMA,PS,POM and etc.
    Cavity material 45#,50#,P20,H13, 718 2738, NAK80, S136, SKD61 etc.
    Runner Cold/Hot runner
    Cavity Multi or single cavity
    Standart parts Hasco
    Gate type Side gate,Sub gate,Pin point gate,Edge gate etc.
    Treatment Heat treatment and Nitriding,polish ect.
    HRC H45~52
    Product weight 50~5000g
    Machine type 160Ton,250Ton,650Ton
    The standard of appearance of the products for stripe MT(Mold Tech),YS,HN series
    The way of Color contrast RAL K7,PANTONE





    1. Quote competitive price according customer detail requirement

    2. Sign agreement.

    3.Customer T/T deposit to us to design mould

    4.Send mould drawing to customer for confirmation

    5.Mould design confirmed and start to make mould.

    6.Make mould trial during tooling time(which we get agreement with customer).

    7.Seed mould trial sample to customer for inspection.Or customer come to our factory to inspect mould


    8.Customer T/T balance to us after mould confirmed.

    9.Deliver mould after get balance.


    Our Services

    1. CNC Plastic/Metal Prototypes

    2. Plastic Injection molding&Plastic Injection mould

    3. Vacuum casting/vacuum forming(Silicon Mould)

    4. Low Volume Production

    5. Rapid Hardware/Sheet Metal Prototypes

    6. CNC Aluminum/Brass/Copper/Bronze CNC machining

    7. Automotive and medical equipment Prototypes

    8. SLA/SLS prototype

    9. Metal Stamping&NCT Stamping

    10. 3D Printing

    11. Die-casting, hardware machining

    12. Electronic Manufacturing Service

    13. Lathing parts

    14. Design service (OEM service)


    We can tailor various kinds of Plastic mould for each customer as per their requirements. The quotation can

    be made based on drawings or samples provided by the customers. Our products are both excellent in quality

    and reasonable in price. Your satisfaction is guarantee.
