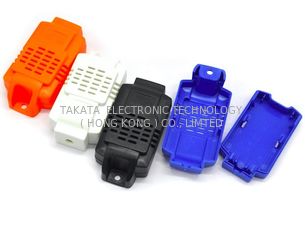

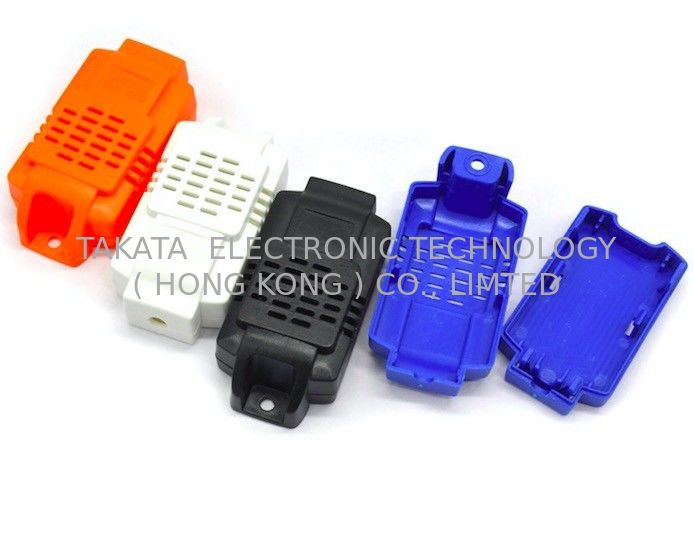

ABS Hot Runner Plastic Injection
Product Details:
| Place of Origin: | Dongguan China |
| Brand Name: | GT |
| Certification: | ISO 9001 , IGS |
| Model Number: | Hot Runner Injection Mold |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 mold |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Woodencase for packaging mold & Carton Box for packaging products |
| Delivery Time: | 20 days after 2D 3D confirmed |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 65 molds / month |
|
Detail Information |
|||
| Mold Type: | Hot Runner Injection Mold | Mould Life: | 500000-600000 Shots |
|---|---|---|---|
| Design Software: | UG , PROE , CAD | Material: | ABS / PP / PC / POM / PA66 |
| Mould Material: | H13 , 2738 , S136 , SKD61 | Mould Base: | Futaba , Lkm , Hasco , Dme |
| Brand: | GT | Tolerance: | Up To 0.01mm |
| Highlight: | 3000000 Shots Hot Runner Plastic Injection,ABS Hot Runner Plastic Injection,ABS hot runner mould |
||
Product Description
We can do the following injection molding products
Housings, containers, caps, fittings,including as below
Power-tool housing, Disposable razors, Electrical Switches,Crates/Recycling boxes
Automotive dash boards,Television Cabinets,Drug Inhalation Units,Automotive bumpers,
Wheelie bins ,Syringes,Telephone handsets ,Washing-up bowls,DVDs,
Bottle Lids/closures,Battery Casings
Mould Quality Control
For the Q/C of mould, there are 3 steps:
1.Mould Material Q/C
- Mould Steel Checking,Standard Spare Parts Checking
2. Mould Making Process Q/C
- Design checking ,Each part of mould's size checking after machining according to 2D drawing , Mould testing
3.Check with customer's requirement again before mould shipping.
Steps of injection plastic parts
-
Negotiations: Quality,material,price,payment,delivery time item and so on
- Place an order: According customer's drawing or sample
- R&D: According customer's requirements,we could design or improve 3D modeling
- Design confirmation: We send 3D drawing to customer for confirmation before we make the mould
- Mould processing: CNC EDM machine processing then assembly and trial
- Sample confirm: We will send trial sample to customers.Before shipment,If the sample isn’t satisfied by customers.We will modify mould until they are satisfied.
- Mass production: If customers need mass production of plastic products,We can offer
- Manufacturing Package and Delivery
| Product name | Hot Runner Injection Mold |
| Mold shaping | Hot runner injection molding |
| Mold base | LKM;HASCO;DME,etc |
| Mold material | NAK20,S136,P20.718H,738H,45#,etc |
| Mold cavity | Single or Multi |
| Tolerance | +/-0.001mm |
| Finish | Anodized,Polish,Silk-screen,Painting,etc |
| Sprue gate | Hot/cold runner;pin-point gate,etc |
| Design software | UG,PROE,CAD,SOLIDWORK,etc |
| Product material | ABS,PP,PE,POM,PMMA,etc |
| Mold life | 100k-500k shots |
| Lead time | 25-45 days |
| Transportation | By sea, by air or by land as you request |
| Package | Standard or as you request |
| OEM/ODM | Acceptable |
| Certificate | ISO9001: 2015, TS16949;SGS |
Detail information of mould steel:
|
Mould material
|
mould hardness
|
mould life
|
|
P20
|
HRC 29-33
|
300000 shot
|
|
H13
|
HRC>43
|
1000000 shot
|
|
718
|
HRC 30-36
|
500000 shot
|
|
S136
|
HRC 48-52
|
50000 shot
|
|
2344
|
HRC>48
|
800000 shot
|
