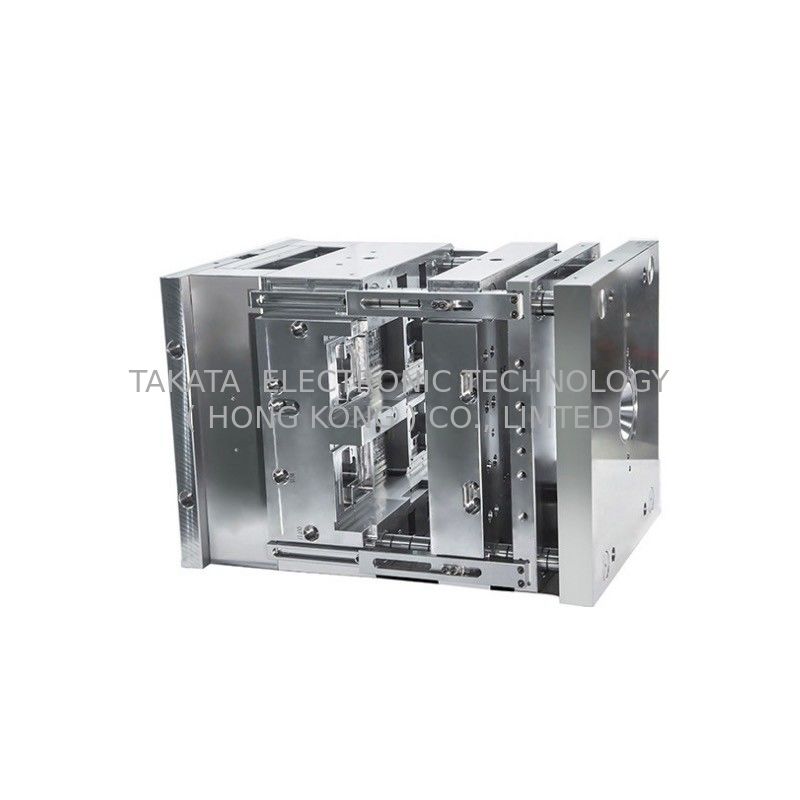

Futaba Base SKD61 Two Color Molding
Product Details:
| Place of Origin: | Dongguan China |
| Brand Name: | GT |
| Certification: | ISO 9001 , IGS |
| Model Number: | Double Injection Mold |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 mold |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Woodencase for packaging mold & Carton Box for packaging products |
| Delivery Time: | 20 days after 2D 3D confirmed |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram |
| Supply Ability: | 65 molds / month |
|
Detail Information |
|||
| Mold Type: | Double Injection Mold | Design Software: | UG , PROE , CAD |
|---|---|---|---|
| Plastic Material: | PP, PC , PS , PE | Mould Material: | H13 , 2738 , S136 , SKD61 |
| Mould Base: | Futaba , Lkm , Hasco , Dme | Mould Life: | 300000-500000 Shots |
| Mold Cavity: | 1-32 Cavity | Tolerance: | Up To 0.01mm |
| High Light: | SKD61 two color molding,Futaba Base two color molding,SKD61 injection molded parts |
||
Product Description
The mould is made with many complicated slides and inserts.We can customize diverse moulds for our clients based on the 3D drawing they provide, such as the electronic part mould, plastic injection mould, die-casting mould and so on.
Our full turn key solutions include: electronics design, tooling design and manufacture, material procurement and supply chain management, electronics & plastics assembly, test development, final system box build, This range of capability provides for the seamless transition of products from one service offering to another, reducing time to market and total cost.
Producing Process
Audit drawings - mold flow analysis - design validation - Custom Materials - mold processing - core processing - electrode machining - Runner system processing - parts processing and procurement - machining acceptance - cavity surface treatment process - complex mode Die - The entire mold surface coating - Mounting plate - mold sample - sample test - sending samples
Trade information:
| MOQ | 1 set |
| Mold lead time | T1 sample, about 3-10 weeks, according to the mold requirement |
| Production lead time | 2-5 weeks, according to the order Qty |
| Mold payment term | 50% T/T deposit with PO, balance 50% T/T after sample approved |
| Products payment term | 30% T/T deposit with PO, balance 70% T/T before shipment |
| Port of loading | Ningbo or Shanghai port, also can be Shenzhen port |
Description:
| Mould material | 45#, 50#, P20, H13, 718, 2738, NAK80, S136, SKD61 etc. |
| Mould base | LKM, HASCO etc. |
| Cavity | Single/multi |
| Runner | Hot/cold |
| Design software | UG, PROE, CAD, CAXA etc. |
| Plastic material | PP, PC, PS, PE, PU, PVC, ABS, PMMA etc. |
| Mould life | 300,000-3,000,000 shots |
| Delivery time | 15-60days |
| Specification | Depends on customer's requirements |
| Mold doff way | Doff plate, ejectors, air valves, hydraulic jar, etc |
| Mold hot treatment | Including quencher, tempering, etc |
| Mold cooling system | Water cooling or Beryllium bronze colling, etc |
Competitive Advantage:
1. We keep long term cooperation with some world Top Brand on electronic product area, such Epson,
Canon and Sony.
2. We have successfully gained the quality certificate of ISO 9001 and IGS.
3. We can design and manufacture the mould in different specification and standard, such as DME,HASCO
and DAIDO.
4. The factory is well equiped with the most advanced testing instrument, it is effective to ensure the precision
of the mould.
5. Strict quality control；
6. Good After-sale service；
7. On time delivery
