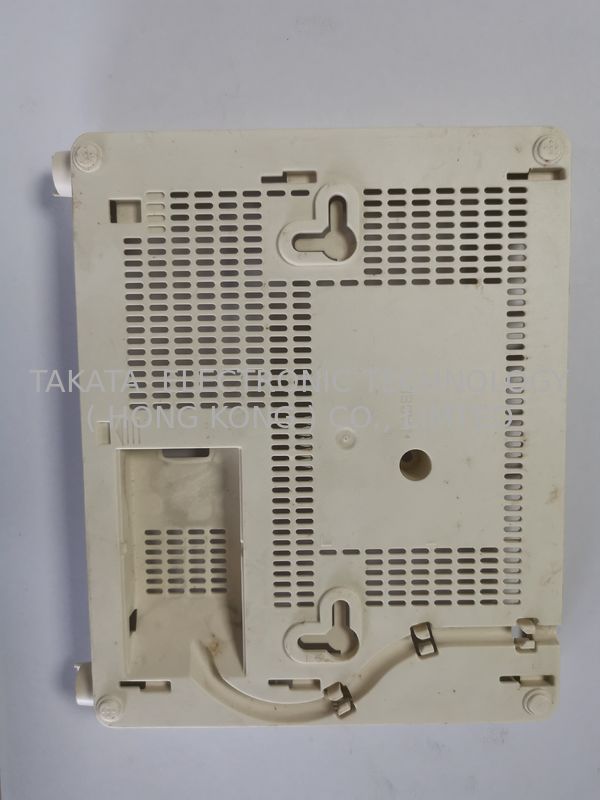

CAD Design NAK80 DME Base Runner Injection Molding

CAD Design NAK80 DME Base Runner Injection Molding

Product Details:

Place of Origin: Dongguan China
Brand Name: GT
Certification: ISO 9001 , IGS
Model Number: Hot Runner Injection Mold

Payment & Shipping Terms:

Minimum Order Quantity: 1 mold
Price: Negotiate
Packaging Details: Woodencase for packaging mold & Carton Box for packaging products
Delivery Time: 20 days after 2D 3D confirmed
Payment Terms: T/T, L/C, Western Union
Supply Ability: 65 molds / month
Get Best Price Contact Now

Detail Information

Mold Type: Hot Runner Injection Mold Mould Life: 500000-600000 Shots
Design Software: UG , PROE , CAD Material: ABS / PP / PC / POM / PA66
Mould Material: H13 , 2738 , S136 , SKD61 Mould Base: Futaba , Lkm , Hasco , Dme
Cavity: Single Mould Tolerance: Up To 0.01mm
High Light:

DME Base Runner Injection Molding

,

NAK80 Runner Injection Molding

,

NAK80 runner injection moulding

Product Description





Our Services:



Design for Manufacturing;
Manufacturing Coordination;
Mould design;
Manufacturing;
Second processing;
Assembly and etc.,
One-stop services for plastic parts.
Project Evaluation;
Product Design;
Electronic Design & Engineering;
Mechanical Design & Engineering;
Prototype Design & Engineering;






Mold information
content
To be discussed
the price is for reference only,the specific price can be negotiated;if there are any other requirements,please state in advance
Product material
ABS,PP,PC,PA,PMMA,PS,POM and etc.
Moldbase
FUTABA,LKM,HASCO,DME,you can choose
Cavity material
45#,50#,P20,H13,718 2738,NAK80,S136,SKD61 etc
Runner
cold/hot runner
Cavity
multi or single cavity
Customized
Per customer request
Lead time
about 25 days,depond on reality project
Package
standard exported wooden box packed
Design software
UG,PROE,CAD,Solidworks


Competitive Advantage:



1. We keep long term cooperation with some world Top Brand on electronic product area, such Epson,

Canon and Sony.

2. We have successfully gained the quality certificate of ISO 9001 and IGS.

3. We can design and manufacture the mould in different specification and standard, such as DME,HASCO

and DAIDO.

4. The factory is well equiped with the most advanced testing instrument, it is effective to ensure the precision

of the mould.

5. Strict quality control;

6. Good After-sale service;

7. On time delivery





Detail information of  mould steel:

Mould material
mould hardness
mould life
P20
HRC 29-33
300000 shot
H13
HRC>43
1000000 shot
718
HRC 30-36
500000 shot
S136
HRC 48-52
50000 shot
2344
HRC>48
800000 shot
