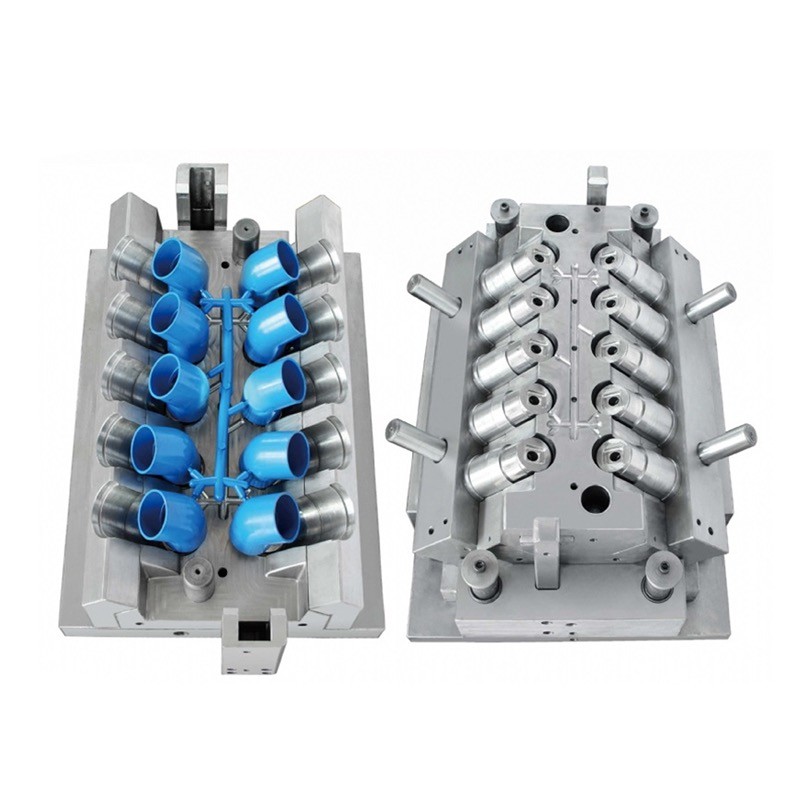

    Custom ± 0.005mm ABS Hot Runner Injection Mold

    Product Details:

    Place of Origin: Dongguan China
    Brand Name: GT
    Certification: ISO 9001 , IGS
    Model Number: Hot Runner Injection Mold

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 mold
    Price: Negotiate
    Packaging Details: Woodencase for packaging mold & Carton Box for packaging products
    Delivery Time: 20 days after 2D 3D confirmed
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 65 molds / month
    Get Best Price Contact Now

    Detail Information

    Mold Type: Hot Runner Injection Mold Mould Life: 500000-600000 Shots
    Design Software: UG , PROE , CAD Material: ABS / PP / PC / POM / PA66
    Mould Material: H13 , 2738 , S136 , SKD61 Mould Base: Futaba , Lkm , Hasco , Dme
    Part Tolerance: ± 0.005mm Tolerance: Up To 0.01mm
    High Light:

    ABS Hot Runner Injection Mold

    ,

    ± 0.005mm Hot Runner Injection Mold

    ,

    ± 0.005mm hot runner mould

    Product Description

    Custom ± 0.005mm ABS Hot Runner Injection Mold





    Advantages of injection plastic parts

    1. Competitive price
    2. Continuance service and support
    3. Diversified rich experienced skilled workers
    4. Custom R&D program coordination
    5. Application expertise
    6. Quality,reliability and long product life
    7. Mature,perfect and excellence,but simple design



    Steps of injection plastic parts

    1. Negotiations: Quality,material,price,payment,delivery time item and so on

    2. Place an order: According customer's drawing or sample
    3. R&D: According customer's requirements,we could design or improve 3D modeling
    4. Design confirmation: We send 3D drawing to customer for confirmation before we make the mould
    5. Mould processing: CNC EDM machine processing then assembly and trial
    6. Sample confirm: We will send trial sample to customers.Before shipment,If the sample isn’t satisfied by customers.We will modify mould until they are satisfied.
    7. Mass production: If customers need mass production of plastic products,We can offer
    8. Manufacturing Package and Delivery




    Product Name
    Hot Runner Injection Mold
    Mould Cavity
    1*multi- Cavity,depend on your machine
    Mould Steel
    S50C/P20H/718/H13/S136/2316/2738etc
    Steel Hardness
    28-50HRC
    Mould Base
    LKM,DME,HASCO,self-made etc.
    Mould Runner
    Hot/Cold Runner
    Hot Runner Type
    China Hot Runner,YUDO, Husky, Synventive,Thermoplay,Ewikon, Mold Master,DME
    Gate
    Point Gate, Side Gate, direct gate way,Sub-Gate,Tab Gate, Fan Gate
    Ejection
    Stripper Plate, Ejection Block, Ejectors Pins,gas,Cylinder
    Mould Life
    >300,000 Shots ,Different steel with different mold life
    Production Time
    30-50days ,it depend on product
    Mould Parts
    China standard / SKD
    Mould Quality Levels
    Level A quality(Highest Level Quality),Level B quality(Middle Level Quality),Level C quality(Lowest Level Quality) , different level with different price


    Attention
    When you send us the mould inquiry, please offer the following information:
    1) Quality level you choose: Level A/Level B/Level C
    2) Photo together with dimension/ drawing design





    Mould Quality Control
    For the Q/C of mould, there are 3 steps:
    1.Mould Material Q/C
    - Mould Steel Checking,Standard Spare Parts Checking
    2. Mould Making Process Q/C
    - Design checking ,Each part of mould's size checking after machining according to 2D drawing , Mould testing
    3.Check with customer's requirement again before mould shipping.






    Detail information of  mould steel:

    Mould material
    mould hardness
    mould life
    P20
    HRC 29-33
    300000 shot
    H13
    HRC>43
    1000000 shot
    718
    HRC 30-36
    500000 shot
    S136
    HRC 48-52
    50000 shot
    2344
    HRC>48
    800000 shot
