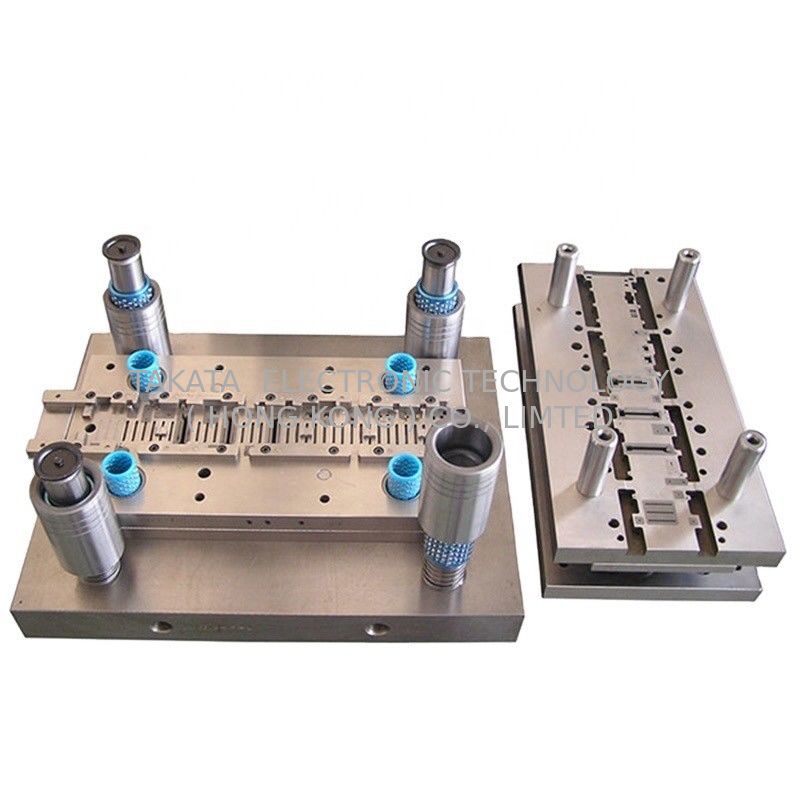

    Hot Forming NAK80 LKM Base Custom Metal Molds

    Product Details:

    Place of Origin: Dongguan China
    Brand Name: GT
    Certification: CE / ISO9001
    Model Number: Metal Stamping Mold

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 mold
    Price: Negotiate
    Packaging Details: Woodencase for packaging mold & Carton Box for packaging products
    Delivery Time: 20 days after 2D 3D confirmed
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 65 molds / month
    Get Best Price Contact Now

    Detail Information

    Mold Base: LKM C50 + P20 For AB , Cast Iron Etc Product Material: Aluminium , ADC12 , ADC14 , A360 , A380 , AlSi9Cu3 And So On
    Shape & Color: Can Be Design According To Your Needs Model: Sheet Metal Stamping Molds Tool And Die Makers
    Item Name: Metal Stamping Mold Certificated: ISO 9001:2015
    Shaping Mode: Die Casting Mold Treatment: Heat Treatment >HRC45
    High Light:

    LKM Base Custom Metal Molds

    ,

    NAK80 Custom Metal Molds

    ,

    NAK80 metal press mold

    Product Description

    Hot Forming NAK80 LKM Base Custom Metal Molds



    Product Description:



    1) Product Material: Stainless Steel/Aluminum/Carbon Steel/SPCC/SGCC etc.

    2) Mould Cavity: Single cavity, Multi Cavity

    3) Mould Base: LKM,HASCO,DME Standard

    4) Runner: Hot Runner,Cold Runner

    5) Mould Core Steel:#45 steel, 718, P20,NAK80,S136 etc.

    6) Mould Life:500,000-1,000,000 shots gurantee

    7) Steel Hardness:46-56 HRC

    8) Mould Finish: EDM or High Polish

    9) MAX Mould Size: 1700mmX1700mm

    10) Equipment: CNC, Lathe,Grinding,Milling,Drilling,EDM Machines



    Design




    Before mold fabrication, we will analyze the customer's drawings and provide design change soluction if necessary. Mold design will be sent for approval before each mold building. All of our tools are constructed to rigid DME and Hasco mold standards.We utilize only high-grade mold steels from companies such as Uddeholm and International mold steel(P20,H13,2344,420,S-7,718H,S136,etc).For the hot runner system,we use MoldMaster,DME, Husky,Yudo,etc.



    Metal Stamping Design Processes




    Metal stamping is a complex process that can include a number of metal forming processes —blanking, punching, bending, and piercing and more. Blanking: This process is about cutting the rough outline or shape of the product. This stage is about minimizing and avoiding burrs, which can drive up the cost of your part and extend lead time. The step is where you determine hole diameter, geometry/taper, the spacing between edge-to-hole and insert the first piercing.




    Product Name
    Power press dies/mould
    Material of Die
    DC53., SKH-9, SKD11, A3,SKD61 etc.
    Die Type
    Stamping press moulds , stamping die, punching die, sheet metal mould , progressivedie, terminal die,single die, double die or
    according to your parts
    Drawing format
    igs,stp, prt, asm, pdf, dwg, dxf,Step
    Die Life
    1,000,000-3,000,000 shots
    First Trial
    15-25 days after mold drawing confirmed
    Mould design
    Design the mould structure drawing according to your product drawing or sample, then send to you for confirmation.
    Quality confirm
    You will confirm our stamping die quality according to sample.
    If you need to adjust the product structure, we can help you to change it further.





    We have full range of advanced machinery and equipments: Laser cutting machine, CNC bend machine, Punching machines, CNC Lathe and milling machines, molding injection machines. And we also have experienced technical staffs, who are engaged in technical development. Our skilled workers, professional engineers, R&D center and excellent foreign trade team always keep the passion to support our customers.
