OEM ODM Thermos Cap Bottle Injection Molding PP Cork Material
Product Details:
| Place of Origin: | Dongguan China |
| Brand Name: | GT |
| Certification: | ISO 9001 , IGS |
| Model Number: | Plastic Injection Mold |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 mold |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Woodencase for packaging mold & Carton Box for packaging products |
| Delivery Time: | 20 days after 2D 3D confirmed |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 65 molds / month |
|
Detail Information |
|||
| Key Words: | Plastic Injection Mold | Mould Life: | 250000-300000shots |
|---|---|---|---|
| Design Software: | UG , PROE , CAD | Plastic Material: | PP, PC , PS , PE |
| Mould Material: | H13 , 2738 , S136 , SKD61 | Mould Base: | Futaba , Lkm , Hasco , Dme |
| OEM / ODM: | Acceptable | Tolerance: | Up To 0.01mm |
| High Light: | PP Cork Bottle Injection Molding,Thermos Bottle Injection Molding,ODM Bottle Injection Molding |
||
Product Description

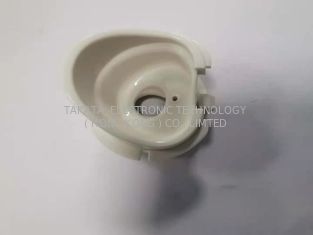

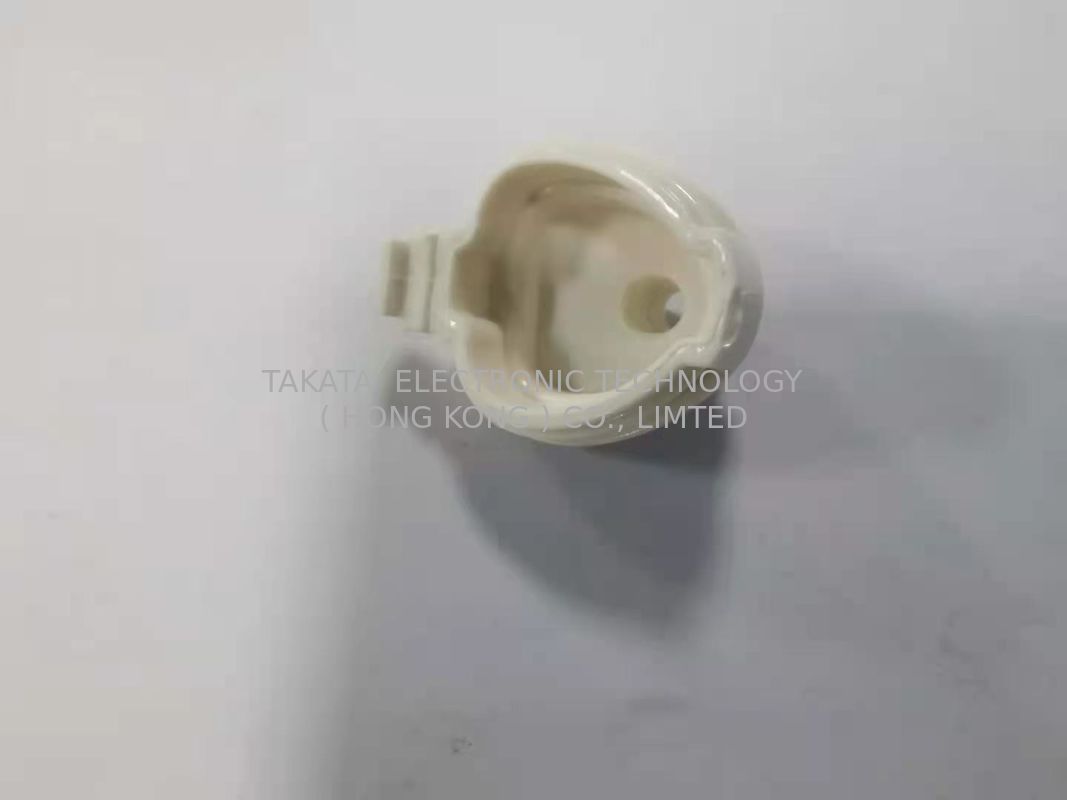

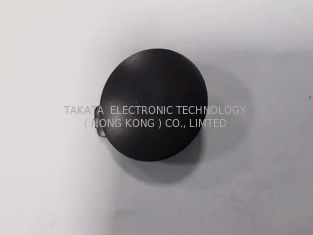

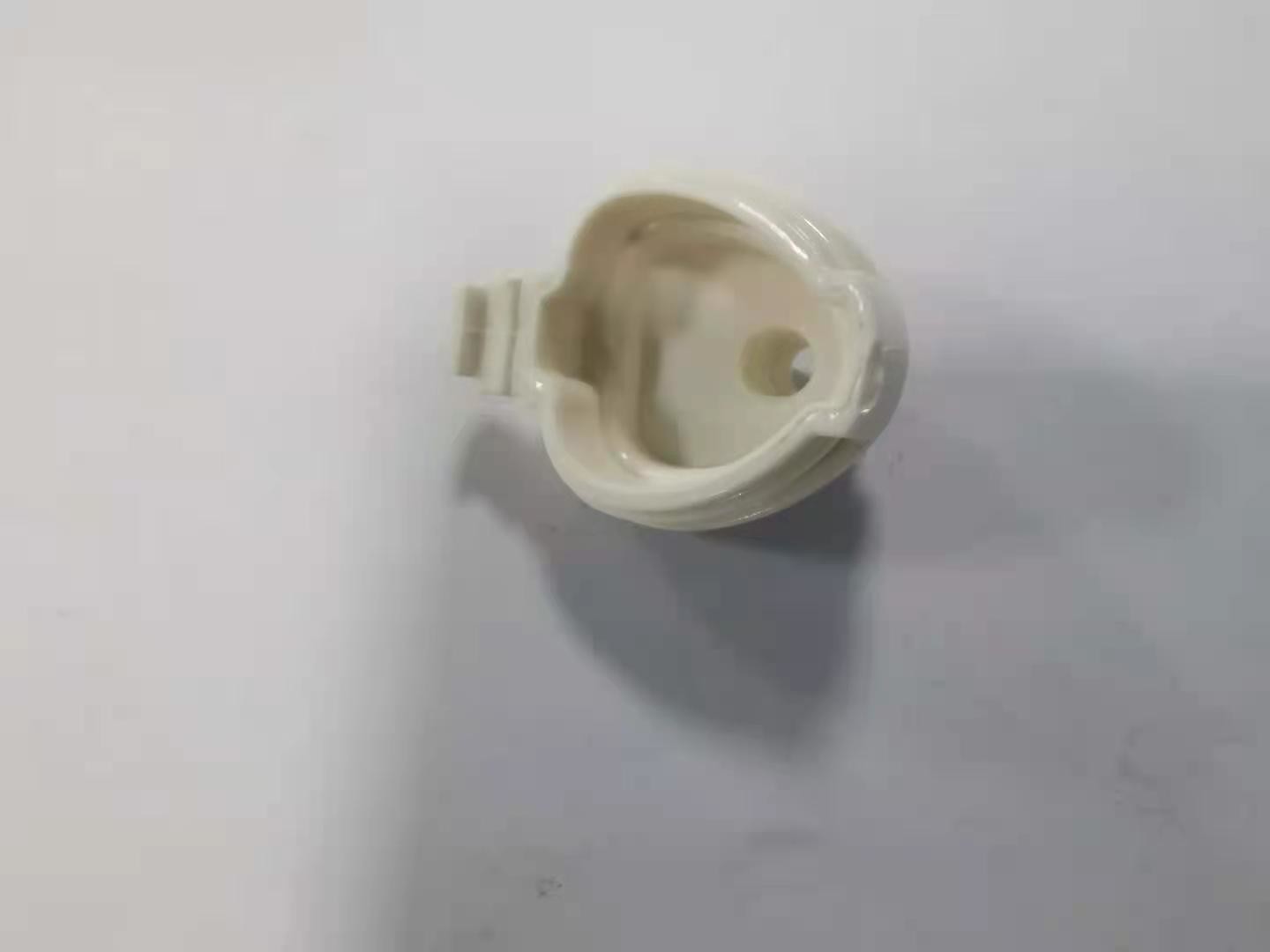

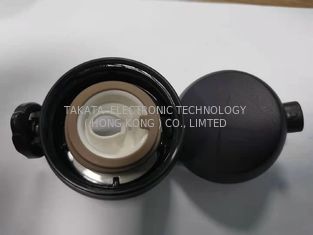

OEM ODM Thermos Bottle Cap Injection Mold / Material : PP+Cork
| Capacity | 520ml/750ml/900ml |
| Material | Inner 304 stainless steel, outer 201 stainless steel |
| Color | Customized |
| Logo | Customized |
| Packing |
Available packing is one bottle in one pp bag, eggcrate/white box/color box, 30pcs in one carton Customized packing is according to your requirement |
| Delivery time |
Sample&Stock: 3-7days Mass order: 35-40days |
1. Samples/Drawing &Requirement from you
2. Mould design:we will Communicate and Exchange the opinion with you after you place order.
3. Material Purchase:Steel cutting and Mould base tooling.
4. Assembling.
5. Inspection of mould : following and controlling the tooling processing.
6. Mould testing:We will inform you the date.Than will send the sample's inspection report&injection parameters with the sample to you!
7. Your instruction &confirmation for shipment.
8. Ready made mould before packing.
our service
1. your inquiry related to our product&price will be replied within 24hours.
2. OEM&ODM projects are highly welcomed.We have strong R&D team here to help
3. Your business relationship with us will be confidential to any third party.
4. Good after sale service offered,please get back if you got question.
Plastic molding Specification
1. Professional manufacturer,design,production injection mould and stamping mould quality control
2. rich export experience plastic injection mould and stamping mould
3. Reasonable price of design mould
4. Cavities: single or as per your requirements cavity
5. Treatment: S45C Pretreat>25Hrc,And Nitriding
6. Mould Steel: Cavity ,Core and slide: P20 ,2738,2136 available Moldbase :LKM available
7. Standard:DEM ,HUSKY,available
8. Hot runner: according to your demand
9. Life time: >300 Thousand Times
10. Package: Plywood case, anti-rust paint
Plastic Injection Mold making
1. Samples/Drawing &Requirement from you
2. Mould design:we will Communicate and Exchange the opinion with you after you place order.
3. Material Purchase:Steel cutting and Mould base tooling.
4. Assembling.
5. Inspection of mould : following and controlling the tooling processing.
6. Mould testing:We will inform you the date.Than will send the sample's inspection report&injection parameters with the sample to you!
7. Your instruction &confirmation for shipment.
8. Ready made mould before packing.
9. We provide any differeny kinds of plastic injection mould, blow mould, silicone mould, die casting mould service.
|
PLASTIC INJECTION PART BASIC INFORMATION
|
PLASTIC INJECTION MOULD BASIC DESCRIPTION
|
||
|
Plastic Part Name
|
Automotive plastic product
|
Injection System
|
Hot runner /Cold Runner
|
|
Surface Requirement
|
Texture EDM SPI Chrome Coating
|
Cavitation
|
Single /Mutil Cavites
|
|
Plastic Part Resin
|
thermoplastic/Thermosetting
|
Ejector System
|
Pin/air Valve/Stripper plate
|
|
Tolerance Request
|
UP to (±0.005mm)
|
Steel Standard
|
ASSAB/FINKL/BOHLER/ Groditz/Buderus
|
|
Production Quantity
|
Up to 1 miliion
|
Cooling
|
Baffles/Sprin Piple/3D printing water line
|
|
Part Size Range
|
Up to 1500mm
|
Standard Delivery
|
40 days or 5 weeks
|
|
Multi Injection
|
Single/Double/multi color
|
Standard Parts/Cylinders
|
DME/HASCO/PROGRESSIVE/
MISUMI/Parker/HP/Merkle
|
|
Design Software
|
Data exchange: UG, PRO/E, SOLIDWORKS, CAITA, CAD, STP, X_T, IGS, PRT, DWG, DXF
|
Design Capability
|
DFM,Mould flow analysis,Product optimization,
Full 2D & 3D mould design,Reverse engineering,Collaborative design with customer's
idea |
|
Quality Assurance
|
Design Control, Steel Hardness Inspection Report, Steel Dimension Control Report, Mold Core and Cavity Dimension Inspection Report
|
Documents / Reports Provided
|
Fully drawing,Weekly Processing Report,
Steel Dimension report, Processing Report,Sample Dimension Report.
|
