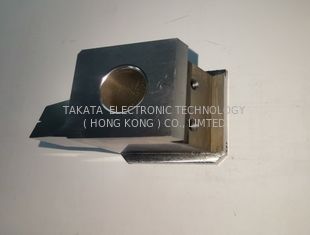

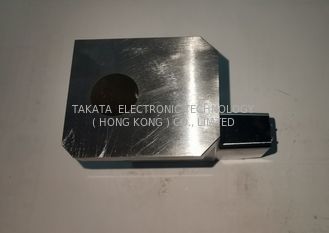

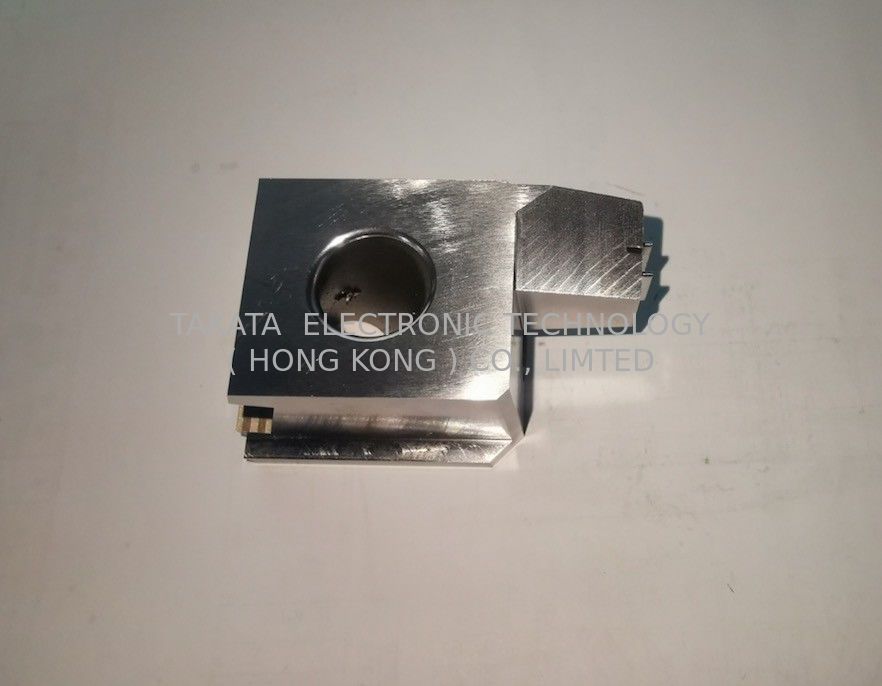

    Single Mould GT NAK80 Injection Mold Parts




    Mould position



    Generally refers to the positioning mechanism of the mold, that is, any mechanism that can obtain lateral core pulling or lateral parting and reset action to pull out the product's undercut, depression and other positions.




    Positioning action principle and design essentialsedit



    It uses the mold opening action of the molding to make the diagonal brace tip and the slider move relative to each other, so that the slider moves along the mold opening direction and the horizontal direction to make it free from the undercut. as the picture shows:
    In the picture:
    β = α +2 °~3 ° (to prevent interference when clamping the mold and reduce friction when opening the mold)
    α ≦ 25 ° (α is the inclination angle of the diagonal brace pin)
    L=1.5D (L is the mating length)
    S=T+2 ~ 3mm (S is the horizontal movement distance of the slider; T is the finished product undercut)
    S=(L1xsina- δ )/cos α (δ is the gap between the brace tip and the sliding block, generally 0.5MM;
    L1 is the vertical distance of the brace tip in the slider)





    product Used:



    Automotive Connector Mold
    Precision Connector Mold
    Injection Products
    Precision Powder Metallurgy Mold
    Powder Injection
    Die-Casting Mold




    Tolerance

    Accuracy of grinding: 0.001 mm;
    Accuracy of EDM: 0.002 mm;
    Accuracy of Wire-cutting: 0.002mm;
    Accuracy of CNC: 0.002mm
    In short, the requirment of tolerance as customer's demand.




    Item
    Accuracy Of Wire-Cutting: 0.002mm Precision Mold Inserts For Powder Metallurgy Mold
    Material
    Plastic-ABS, PC, PMMA, POM, PA (NYLON), PP, PBT, etc.
    Metal-Aluminum, Copper, Rubber, Stainless Steel, Sheet Metal, Alloy
    Available Service
    1. Industrial Design
    2. CNC Rapid Prototyping
    3. SLS/SLA/3D Printing Prototype Service
    4. High Precision CNC Machining
    5. Silicone Mold (Vacuum Casting) & Rapid Tooling
    Surface Treatment
    Painting, Polish, Silk-sreen Printing, Anodized, Electronic Plated, Sandblasted, Translucent Surface, Brush, Bending, etc
    Available Drawing Format
    2D Format-- .dwg/.cdr/.pdf/.ai
    3D Format-- .igs/.stp/.step/.sld/.prt/X_T
    The fields we serve
    1. Electronic Digital
    2. Medical Devices
    3. Telecommunications
    4. Auto Parts
    5. Household Appliance
    6. Kitchenwares
    Our Advantage
    1. Good quality and reasonable price.
    2. Shot lead time.
    3. Advanced technology and equipment.
    4. Responsible for any quality problems from us.




    Competitive Advantage:



    1. We keep long term cooperation with some world Top Brand on electronic product area, such Epson,

    Canon and Sony.

    2. We have successfully gained the quality certificate of ISO 9001 and IGS.

    3. We can design and manufacture the mould in different specification and standard, such as DME,HASCO

    and DAIDO.

    4. The factory is well equiped with the most advanced testing instrument, it is effective to ensure the precision

    of the mould.

    5. Strict quality control;

    6. Good After-sale service;

    7. On time delivery
