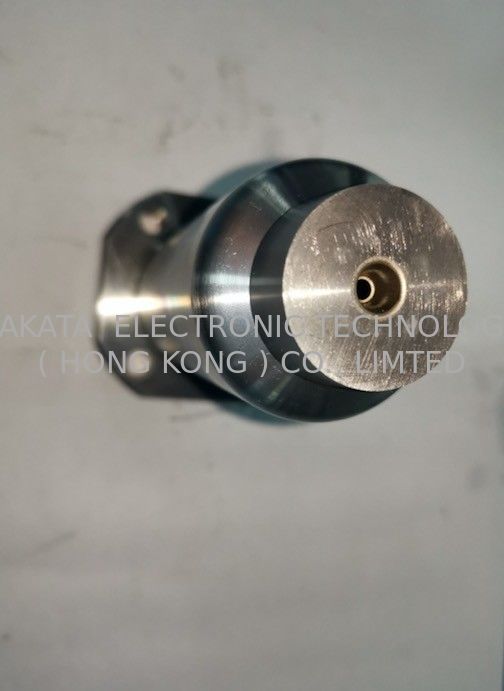

    High Reliability H13 LKM Base Injection Mold Parts

    Product Details:

    Place of Origin: Dongguan China
    Brand Name: GT
    Certification: ISO 9001 , IGS
    Model Number: Injection Mold Parts

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 mold
    Price: Negotiate
    Packaging Details: Woodencase for packaging mold & Carton Box for packaging products
    Delivery Time: 20 days after 2D 3D confirmed
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 65 molds / month
    Get Best Price Contact Now

    Detail Information

    Mold Type: Injection Mold Parts Runner: Cold / Hot
    Mould Life: 50K-3000K Shots Plastic Material: PP, PC , PS , PE
    Mould Material: H13, NAK80, S136, SKD61 Mould Base: Futaba , Lkm , Hasco , Dme
    Cavity: Single Mould Processing Accuracy: 0.002-0.005mm
    High Light:

    LKM Base Injection Mold Parts


    H13 Injection Mold Parts


    H13 plastic molded parts

    Product Description

    High Reliability H13 LKM Base Injection Mold Parts

    We provide free replacement of our parts in case of any unnormal broken within 6 months. The lifespan of parts mainly depends on
    its material and consumption rate, also correct using method.


    Quality Assurance


    1. Incoming material control to make sure all the raw materials are qualified.
    2. Operators follow the daily check list to check the machines to make sure they are in good conditions, and follow the spec to make products.
    3. Use qualified operators and correct parameters to make sure good quality.
    4. According to the quality assurance procedure to check the quality.
    5. Full quality check after product before shipping.


    Mould position


    Generally refers to the positioning mechanism of the mold, that is, any mechanism that can obtain lateral core pulling or lateral parting and reset action to pull out the product's undercut, depression and other positions.


    Positioning action principle and design essentialsedit


    It uses the mold opening action of the molding to make the diagonal brace tip and the slider move relative to each other, so that the slider moves along the mold opening direction and the horizontal direction to make it free from the undercut. as the picture shows:
    In the picture:
    β = α +2 °~3 ° (to prevent interference when clamping the mold and reduce friction when opening the mold)
    α ≦ 25 ° (α is the inclination angle of the diagonal brace pin)
    L=1.5D (L is the mating length)
    S=T+2 ~ 3mm (S is the horizontal movement distance of the slider; T is the finished product undercut)
    S=(L1xsina- δ )/cos α (δ is the gap between the brace tip and the sliding block, generally 0.5MM;
    L1 is the vertical distance of the brace tip in the slider)





    1. Quote competitive price according customer detail requirement

    2. Sign agreement.

    3.Customer T/T deposit to us to design mould

    4.Send mould drawing to customer for confirmation

    5.Mould design confirmed and start to make mould.

    6.Make mould trial during tooling time(which we get agreement with customer).

    7.Seed mould trial sample to customer for inspection.Or customer come to our factory to inspect mould


    8.Customer T/T balance to us after mould confirmed.

    9.Deliver mould after get balance.


    Accuracy Of Wire-Cutting: 0.002mm Precision Mold Inserts For Powder Metallurgy Mold
    Plastic-ABS, PC, PMMA, POM, PA (NYLON), PP, PBT, etc.
    Metal-Aluminum, Copper, Rubber, Stainless Steel, Sheet Metal, Alloy
    Available Service
    1. Industrial Design
    2. CNC Rapid Prototyping
    3. SLS/SLA/3D Printing Prototype Service
    4. High Precision CNC Machining
    5. Silicone Mold (Vacuum Casting) & Rapid Tooling
    Surface Treatment
    Painting, Polish, Silk-sreen Printing, Anodized, Electronic Plated, Sandblasted, Translucent Surface, Brush, Bending, etc
    Available Drawing Format
    2D Format-- .dwg/.cdr/.pdf/.ai
    3D Format-- .igs/.stp/.step/.sld/.prt/X_T
    The fields we serve
    1. Electronic Digital
    2. Medical Devices
    3. Telecommunications
    4. Auto Parts
    5. Household Appliance
    6. Kitchenwares
    Our Advantage
    1. Good quality and reasonable price.
    2. Shot lead time.
    3. Advanced technology and equipment.
    4. Responsible for any quality problems from us.







    Want to Know more details about this product
    I am interested in High Reliability H13 LKM Base Injection Mold Parts could you send me more details such as type, size, quantity, material, etc.
    Waiting for your reply.
