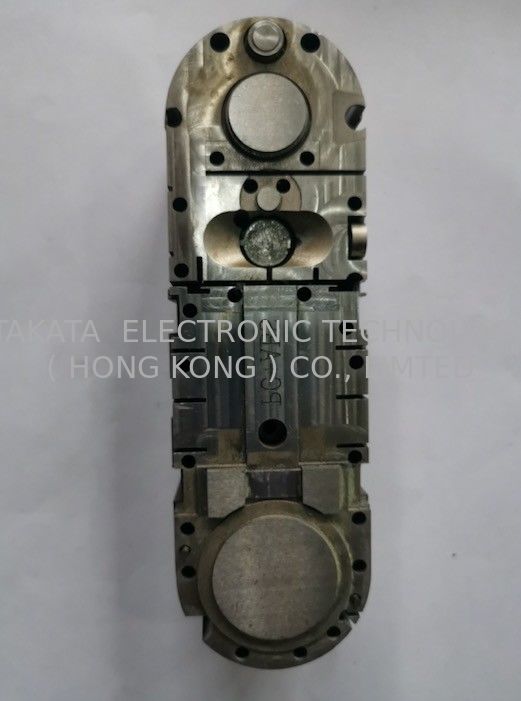

    Single Mould ±0.01mm IGS Injection Mold Parts

    Product Details:

    Place of Origin: Dongguan China
    Brand Name: GT
    Certification: ISO 9001 , IGS
    Model Number: Injection Mold Parts

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 mold
    Price: Negotiate
    Packaging Details: Woodencase for packaging mold & Carton Box for packaging products
    Delivery Time: 20 days after 2D 3D confirmed
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 65 molds / month
    Get Best Price Contact Now

    Detail Information

    Mold Type: Injection Mold Parts Runner: Cold / Hot
    Design Software: UG , PROE , CAD Plastic Material: PP, PC , PS , PE
    Mould Material: H13, NAK80, S136, SKD61 Mould Base: Futaba , Lkm , Hasco , Dme
    Cavity: Single Mould Tolerance: Up To 0.01mm
    High Light:

    ±0.01mm IGS Injection Mold Parts

    ,

    ±0.01mm Injection Mold Parts

    ,

    ±0.01mm plastic injection molding parts

    Product Description

    Single Mould ±0.01mm IGS Injection Mold Parts





    Processing Equipment:


    Parts are manufactured utilizing our precision surface grinding, and EDM machines which include Mitsubishi EDM, Sodick EDM, and Charmille EDM.


    Testing Instruments:


    CMM, Nikon Projector, Mitutoyo Digital Caliper, Mitutoyo Digital Height Gauge, Rockwell Hardness Inspection Instrument, etc




    Introduction of Precision Mold Parts



    1. Name: Custom Made Precision Machining Mold Parts

    2. Equipment List: Horizontal injection machine, Double injection machine, Vertical injection machine, stamping machine.

    3. Injection Molding Machines: We have 43 machines, buyed from Japan Fanuc, Taiwan YiZhan and China HongRui.

    4. Processing methods/ technologies: For the automobile mold parts, it is processed by precision grinders and electrical discharge machines.

    5. Processing equipments: Milling , Grinding, Wire cutting, EDM, etc.

    6. Application: It's assembled on a car mold as a components.

    7. Surface treatment: For this mold part, its surface treatment is polishing. And other surface treatments can be available in our factory, such as: PCD caoting, DLC caoting and mirror polishing, etc.

    8. Design software: UG, PRO/E ,CATIA, SOLIDWORK, CAD, PDF, etc.



    Equipment List



    Equipment Model No. Brand Quantity Accuracy In total
    Projector V-12B Nikon 4 ±0.001mm 9 sets
    High Definition Tool
    Microscope
    MM-400 Nikon 3 ±0.001mm
    Height Gauge MF-501 Nikon 6 ±0.001mm
    Hardness Tester HR-150A Rockwell 1 ±1°
    Wire EDM M50B Seibu 2 ±0.002mm 4 sets
    AQ400L Sodick 2 ±0.002mm
    Grinding SGM450 ShuGuang 16 ±0.001mm 16 sets
    Discharging AD30Ls Sodick 8 ±0.005mm 10 sets
    EA8A Mitsubishi 2 ±0.005mm
    Milling machine   Acmam 3 ±0.05mm 3 sets
    CNC Processing Center D14MA Fanuc 1 ±0.001mm 3 sets
    Carver4006 JingDiao 2 ±0.002mm





    Specifications:



    1. Quote competitive price according customer detail requirement

    2. Sign agreement.

    3. Customer T/T deposit to us to design mould

    4. Send mould drawing to customer for confirmation

    5. Mould design confirmed and start to make mould.

    6. Make mould trial during tooling time(which we get agreement with customer).

    7. Seed mould trial sample to customer for inspection.Or customer come to our factory to inspect mould

    personally.

    8. Customer T/T balance to us after mould confirmed.

    9. Deliver mould after get balance.





    NO. Equipment name Brand Quantity size In total
    1 Horizontal injection machine Fanuc (Japan) 15 50T-150T 43 sets
    2 Horizontal injection machine YiZhan (Taiwan) 16 50T-200T
    3 Double injection machine YiZhan (Taiwan) 1 220T
    4 Vertical injection machine Multil-Plas (Taiwan) 9 50T-100T
    5 stamping machine HongRui (China) 2 45T
