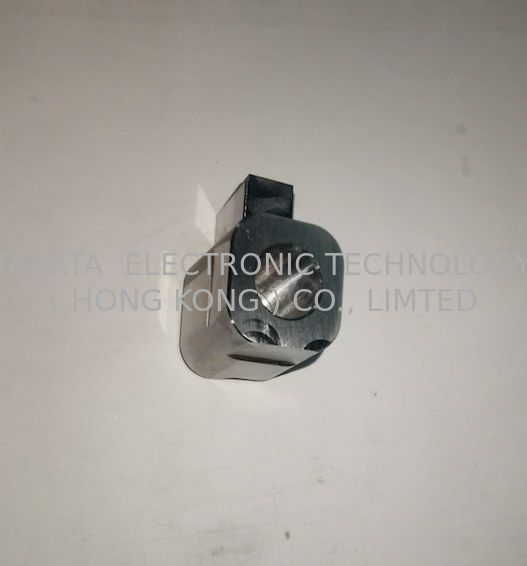

    CNC Machining Futaba Base SKD61 Micro Injection Molding

    Product Details:

    Place of Origin: Dongguan China
    Brand Name: GT
    Certification: ISO 9001 , IGS
    Model Number: Injection Mold Parts

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 mold
    Price: Negotiate
    Packaging Details: Woodencase for packaging mold & Carton Box for packaging products
    Delivery Time: 20 days after 2D 3D confirmed
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 65 molds / month
    Get Best Price Contact Now

    Detail Information

    Mold Type: Injection Mold Parts Runner: Cold / Hot
    Mould Life: 50K-3000K Shots Plastic Material: PP, PC , PS , PE
    Mould Material: H13, NAK80, S136, SKD61 Mould Base: Futaba , Lkm , Hasco , Dme
    Cavity: Single Mould Tolerance: Up To 0.01mm
    High Light:

    SKD61 Micro Injection Molding

    ,

    Futaba Base Micro Injection Molding

    ,

    Futaba Base precision injection molding

    Product Description

    CNC Machining Futaba Base SKD61 Micro Injection Molding






    Tolerance

    Accuracy of grinding: 0.001 mm;
    Accuracy of EDM: 0.002 mm;
    Accuracy of Wire-cutting: 0.002mm;
    Accuracy of CNC: 0.002mm
    In short, the requirment of tolerance as customer's demand.




    Steps of injection plastic parts
    Negotiations: Quality,material,price,payment,delivery time item and so on
    Place an order: According customer's drawing or sample
    R&D: According customer's requirements,we could design or improve 3D modeling
    Design confirmation: We send 3D drawing to customer for confirmation before we make the mould
    Mould processing: CNC EDM machine processing then assembly and trial
    Sample confirm: We will send trial sample to customers.Before shipment,If the sample isn’t satisfied by customers.We will modify mould until they are satisfied.
    Mass production: If customers need mass production of plastic products,We can offer
    Manufacturing Package and Delivery




    Equipment List



    Equipment Model No. Brand Quantity Accuracy In total
    Projector V-12B Nikon 4 ±0.001mm 9 sets
    High Definition Tool
    Microscope
    MM-400 Nikon 3 ±0.001mm
    Height Gauge MF-501 Nikon 6 ±0.001mm
    Hardness Tester HR-150A Rockwell 1 ±1°
    Wire EDM M50B Seibu 2 ±0.002mm 4 sets
    AQ400L Sodick 2 ±0.002mm
    Grinding SGM450 ShuGuang 16 ±0.001mm 16 sets
    Discharging AD30Ls Sodick 8 ±0.005mm 10 sets
    EA8A Mitsubishi 2 ±0.005mm
    Milling machine   Acmam 3 ±0.05mm 3 sets
    CNC Processing Center D14MA Fanuc 1 ±0.001mm 3 sets
    Carver4006 JingDiao 2 ±0.002mm





    Specifications:



    1. Quote competitive price according customer detail requirement

    2. Sign agreement.

    3.Customer T/T deposit to us to design mould

    4.Send mould drawing to customer for confirmation

    5.Mould design confirmed and start to make mould.

    6.Make mould trial during tooling time(which we get agreement with customer).

    7.Seed mould trial sample to customer for inspection.Or customer come to our factory to inspect mould

    personally.

    8.Customer T/T balance to us after mould confirmed.

    9.Deliver mould after get balance.





    We can tailor various kinds of Plastic mould for each customer as per their requirements. The quotation can

    be made based on drawings or samples provided by the customers. Our products are both excellent in quality

    and reasonable in price. Your satisfaction is guarantee.
