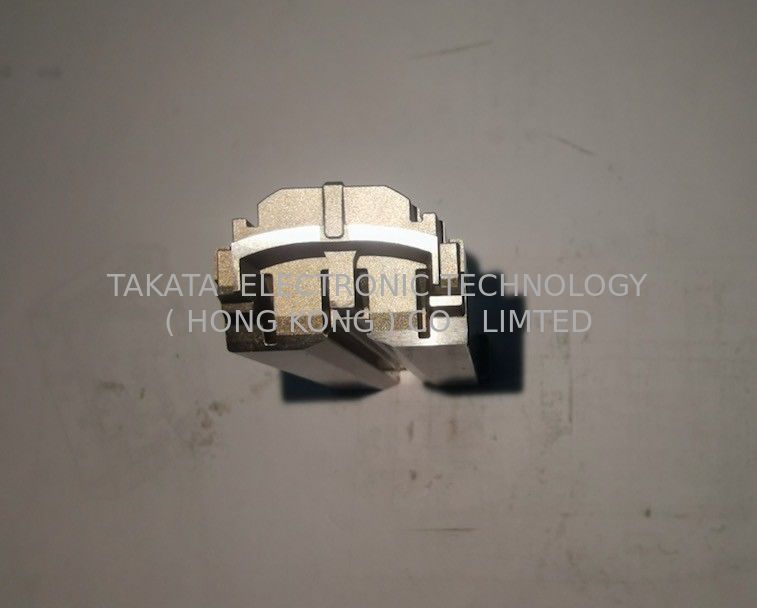

    Wear Resistant ±0.001mm H13 Micro Injection Molding

    Product Details:

    Place of Origin: Dongguan China
    Brand Name: GT
    Certification: ISO 9001 , IGS
    Model Number: Injection Mold Parts

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 mold
    Price: Negotiate
    Packaging Details: Woodencase for packaging mold & Carton Box for packaging products
    Delivery Time: 20 days after 2D 3D confirmed
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 65 molds / month
    Get Best Price Contact Now

    Detail Information

    Mold Type: Injection Mold Parts Runner: Cold / Hot
    Mould Life: 50K-3000K Shots Plastic Material: PP, PC , PS , PE
    Mould Material: H13, NAK80, S136, SKD61 Mould Base: Futaba , Lkm , Hasco , Dme
    Cavity: Single Mould Processing Accuracy: 0.002-0.005mm
    High Light:

    H13 Micro Injection Molding

    ,

    ±0.001mm Micro Injection Molding

    ,

    ±0.001mm injection molded parts

    Product Description

    Wear Resistant ±0.001mm H13 Micro Injection Molding



    Used:



    Automotive Connector Mold
    Precision Connector Mold
    Injection Products
    Precision Powder Metallurgy Mold
    Powder Injection
    Die-Casting Mold





    Specifications:



    1. Quote competitive price according customer detail requirement

    2. Sign agreement.

    3.Customer T/T deposit to us to design mould

    4.Send mould drawing to customer for confirmation

    5.Mould design confirmed and start to make mould.

    6.Make mould trial during tooling time(which we get agreement with customer).

    7.Seed mould trial sample to customer for inspection.Or customer come to our factory to inspect mould

    personally.

    8.Customer T/T balance to us after mould confirmed.

    9.Deliver mould after get balance.




    Tolerance

    Accuracy of grinding: 0.001 mm;
    Accuracy of EDM: 0.002 mm;
    Accuracy of Wire-cutting: 0.002mm;
    Accuracy of CNC: 0.002mm
    In short, the requirment of tolerance as customer's demand.



    Product Name
    Tolerance Control Down To 0.001mm Precision Mold Parts / Mold Inserts
    Material
    DAC/DHA-W/W302/DAC55/DH31-EX/NIKKA30/P20/H13/DAC-S/DAC-M/SKD11/SLD-M/DAC10 etc.
    Size
    21*26*129mm, customized
    Weight
    ≤200KG
    Design
    1.As per the customer’s drawings
    2.As per the customer’s samples
    Process
    Painting,Powder Coating,Polishing, Electroplating, Shoot blas
    Surface Treatment
    Plating,chromate treatment,nitriding,destressing,Black dyeetc.
    Software/ File type
    Pro/E, Auto CAD, CAXA UG,Cimatron CAD/CAM/CAE etc.
    OEM & ODM
    Available
    Tolerance
    ±0.005mm
    Certificate
    ISO9001, Patent



    Wear Resistant ±0.001mm H13 Micro Injection Molding 0
