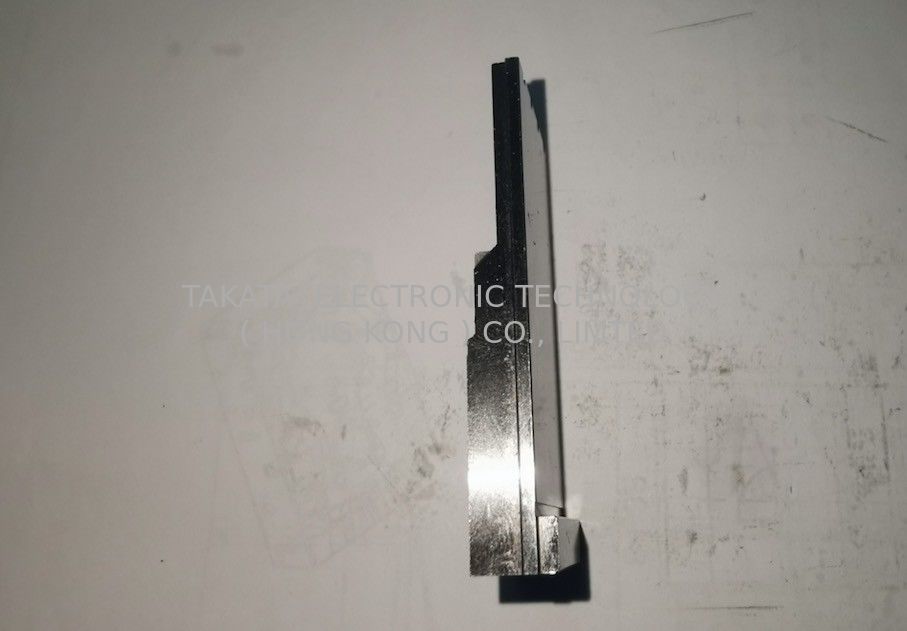

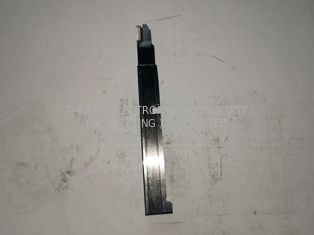

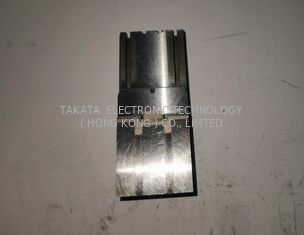

    2D Drawings ±0.002 Mm LKM Base Injection Mold Parts

    Product Details:

    Place of Origin: Dongguan China
    Brand Name: GT
    Certification: ISO 9001 , IGS
    Model Number: Injection Mold Parts

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 mold
    Price: Negotiate
    Packaging Details: Woodencase for packaging mold & Carton Box for packaging products
    Delivery Time: 20 days after 2D 3D confirmed
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 65 molds / month
    Get Best Price Contact Now

    Detail Information

    Mold Type: Injection Mold Parts Runner: Cold / Hot
    Mould Life: 50K-3000K Shots Plastic Material: PP, PC , PS , PE
    Mould Material: H13, NAK80, S136, SKD61 Mould Base: Futaba , Lkm , Hasco , Dme
    Cavity: Single Mould Processing Accuracy: 0.002-0.005mm
    High Light:

    LKM Base Injection Mold Parts

    ,

    ±0.002 Mm Injection Mold Parts

    ,

    ±0.002 Mm plastic moulding parts

    Product Description

    2D Drawings ±0.002 Mm LKM Base Injection Mold Parts





    Process Simulation:




    we emphasize the benefits of DFM to our clients with the knowledge that this powerful diagnostic tool will create a more efficient production cycle and ultimately increase profitability.
    We also are capable of addressing design issues at the earliest possible stage by utilizing Mold flow® simulation software to identify vital information that helps avoid costly part redesign, tooling changes or modifications such as:
    Filling Pattern
    Sink Mark Estimate
    Warpage Trends
    Time & Pressures





    Design:





    Bring your ideas into reality at GY MOULD!

    Our team of highly trained engineers are capable of creating simple to complex designs and assemblies in 2D and 3D formats.

    • 2D Part Drawings (.DWG, .DXF, .PDF)
    • 3D Modeling (.STEP, .STL, .IGES, .X_T)
    • Auto cad 2007
    • UG NX6, PRO-E Wildfire 5.0 and Solidworks 2010


    product Used:



    Automotive Connector Mold
    Precision Connector Mold
    Injection Products
    Precision Powder Metallurgy Mold
    Powder Injection
    Die-Casting Mold




    Tolerance

    Accuracy of grinding: 0.001 mm;
    Accuracy of EDM: 0.002 mm;
    Accuracy of Wire-cutting: 0.002mm;
    Accuracy of CNC: 0.002mm
    In short, the requirment of tolerance as customer's demand.




    Item No
    Precision mold parts
    Company Name
    Kunshan MAP
    Main Product
    Plastic injection molding, precision parts, CNC machining, conformal cooling manufacturing etc.
    Customization
    Yes
    Surface treatment
    Heat treatment, polishing, Ticn coating
    Processing equipments
    CNC//machining center/grinding machine/milling machine/drilling machin/EDM/ wire-cutting machine, etc.
    Inspection instrument
    projector,height gauge,three dimensional measuring instrument,microscope,height gauge,thickness meters,
    International standard
    Non-standard and standard(DME,HASCO,DIN,GB)
    QC System
    Pre-inspection, intermediate inspection, post-inspection, three procedures to ensure that each product is qualified
    Precision
    ± 0.001mm
    Standard
    JIS,DIN,ASTM/AISI international industrial standard
    MOQ
    1
    Straightness
    ± 0.002mm
    Shipment
    International express(DHL FedEx TNT UPS EMS SF Express)
    Delivery time
    general 7-10 days,large qty need to discuss
